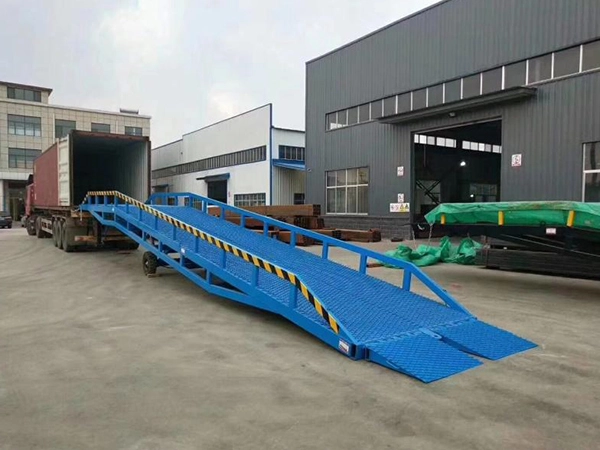

Container loading ramps are widely used in terminals, stations, warehouses and other places. According to the different needs of users, as the special design in terms of dimensions, load bearing and so on. Ramps mounted on the side of the dock, and the dock floor and sides flush.
Familiar with industrial cargo lift, it can be adjustable height according to the level of automobile car, truck directly through the device into the interior of the bulk cargo handling.
Container unloading ramps details:
Main-Beam: 120x60x6mm steel rectagular tube
Auxiliary-Beam: 100x50x4mm steel rectagular tube
Guardrail: 80x40x3mm steel rectagular tube
Platform: 5mm steel plate
Antiskid plate: 5mm steel mesh
Front lip: 12mm steel plate
Back tail platform: 5mm steel checkered plate
Tire: 500-8, Solid
Supporting-Leg: Domestic
Double Anti-Rust Primer before painting for protection.
