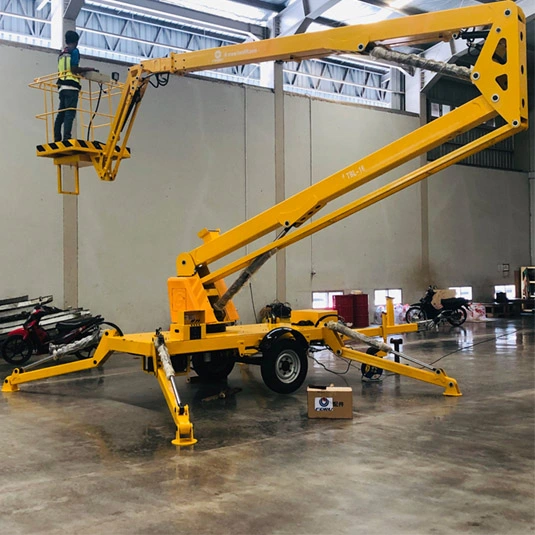

Towable Boom Lift

Name: Towable Boom Lift
Brand: Shandong Foru Tech Co., Ltd.

A towable boom lift, also known as a trailer-mounted boom lift or tow-behind boom lift, is a type of aerial work platform that can be easily transported and towed behind a vehicle. It provides a versatile and mobile solution for accessing elevated areas in various applications, such as maintenance, construction, and tree care.

Details of Towable Boom Lift

Electric or Diesel power Hydraulic Towable Trailer mounted Boom lift
Model	Platform height	Capacity	Working radius	Power source	Dimension	Weight
TGZ-8	8m	200kg	4.5m	Diesel engine	5.21.51.9m	1500kg
TGZ-10	10m	200kg	5m	Diesel engine	5.41.6651.9m	1700kg
TGZ-12	12m	200kg	6m	Diesel engine	6.41.6651.9m	2000kg
TGZ-14	14m	200kg	8.5m	Diesel engine	6.21.732.1m	2350kg
TGZ-16	16m	200kg	9m	Diesel engine	71.732.2m	2600kg
TGZ-18	18m	200kg	10m	Diesel engine	7.11.852.26m	4300kg
TGZ-20	20m	200kg	12m	Diesel engine	7.71.852.26m	4450kg

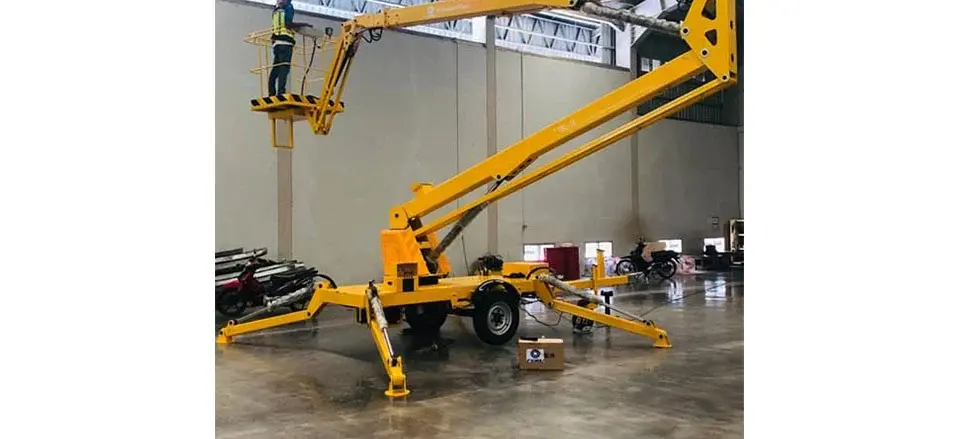

Key Features And Aspects Of Towable Boom Lifts

Key Features and Aspects of Towable Boom Lifts

Mobility and Portability: Towable boom lifts are designed to be transported from one location to another. They are mounted on a trailer with wheels, allowing them to be towed behind a vehicle. This mobility makes them ideal for job sites that require frequent repositioning.
Vertical and Horizontal Reach: Towable boom lifts feature a telescopic or articulated boom that can extend vertically and horizontally. The boom can reach high elevations and provides flexible access to different work areas. Some models may also have an articulating jib for additional maneuverability.
Working Height and Platform Capacity: The working height of towable boom lifts varies, typically ranging from 30 to 70 feet or more. The platform capacity, which refers to the maximum weight the lift can safely support, also varies depending on the model. It's essential to select a lift that meets the specific height and capacity requirements of the job.
Easy Setup and Operation: Towable boom lifts are designed for quick setup and operation. They typically have user-friendly controls and intuitive features for smooth operation. Some models may have self-leveling outriggers to provide stability on uneven terrain.
