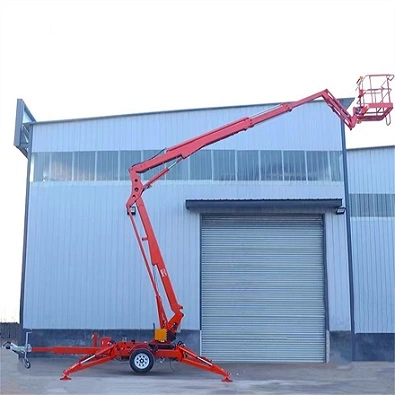

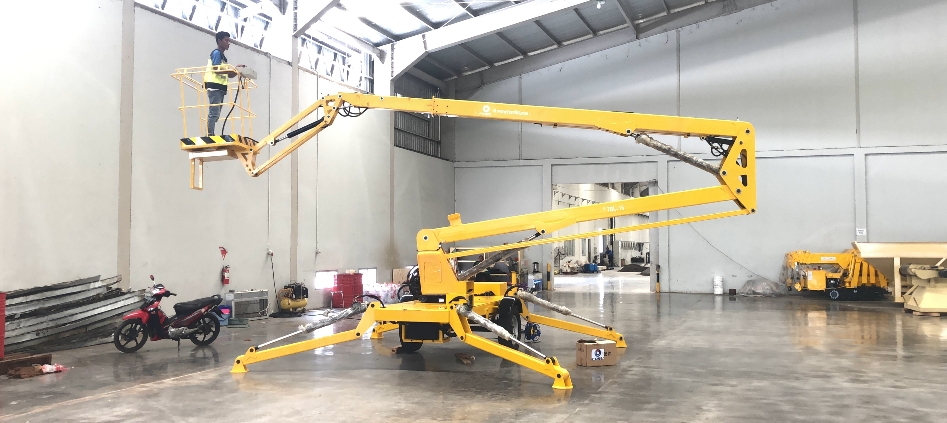

Mobile Boom Lift

Name: Mobile Boom Lift
Brand: Shandong Foru Tech Co., Ltd.

Mobile boom lift is one of the most ideal aerial lift platform for both indoors and outdoors maintenance work. It can rotate 360 degree in the air and platform height is from 10m to 20m. Articulated boom lift is driven by Diesel, Gas, AC electricity, DC Battery or Hybrid Power.It is widely used in neighborhood unit, road light maintenance, factories high place maintenance, construction site and so on.

Details of Mobile Boom Lift

Model Type	FORU-10A	FORU-12A	FORU-14T	FORU-16T	FORU-18T	FORU-20T
Version	Articulated	Articulated	Telescopic	Telescopic	Telescopic	Telescopic
Lifting height	10M	12M	14M	16M	18M	20M
Working height	12M	14M	16M	18M	20M	22M
Load Capacity	200KG
Platform size	0.9*0.7M
Working radius	5.5M	6.5M	8.5M	10.5M	11M	11M
Net Weight	1855KG	2050KG	2500KG	2800KG	3000KG	3100KG
Overall Size( LWH)	5.21.72.1M	6.21.72.1M	5.61.72.1M	5.71.72.2M	6.51.82.3M	5.81.92.3M

Features of Mobile Boom Lift

Platform

The mobile manlift's platform can lift up, extend horizontally, or turn around 360 degrees to stride across certain obstacles for working. So it can realize multipoint work in wide scope.

Legs

With 4 full-automatic hydraulic outriggers to steady the whole machine at any kind of ground conditions. When the road is uneven, four full-automatic legs or single leg can support the machine.

Drive

It is storaged with battery. Very portable personal man lifts are available for you.

Material

Adopt structural steel with high quality, handicraft for single-side welding and double-side molding.

Hydraulic cylinder

Original import or domestic joint venture hydraulic cylinder, with high quality, improving the reliability and prolonging the work time.

Aloft work platform

Equipped with balanced valve, automatic pressure maintaining ,etc.

Advantages

The mobile man lifts are safe, reliable and durable. This type of cargo-lifts with characteristics of flexible moving, smoothly lifting, big convenient operation and so on.

Mobile aerial lifts are widely used in highways, boat yards shopping walls, stadiums, dock, station, marketplaces, gymnasiums, and for residential property, they also have many using fields, such as mobile cherry picker truck boom lift for sale, or portable boom hoist used in workshop,residential property, mining workshops and any other isometric maintenance operation of complex high-altitude construction and other large range homework place.
