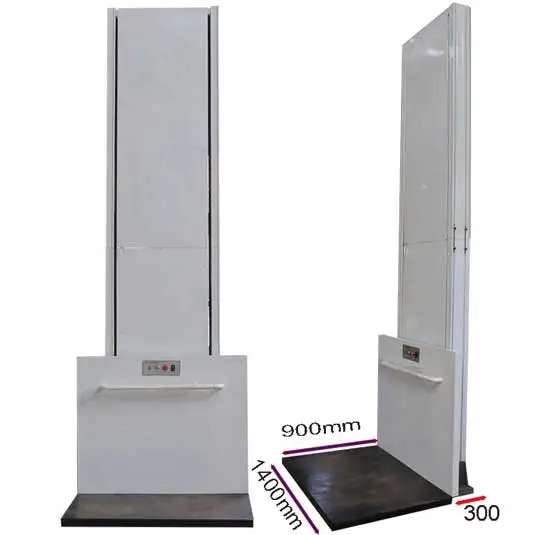

Wheelchair Lift

Name: Wheelchair Lift
Brand: Shandong Foru Tech Co., Ltd.

Home elevator lifts is a type of lift specifically designed for private homes, where the design takes into consideration the following four factors:

1. Compact design in view of the limitations of space in a private residence, usage of the lift restricted primarily to the residents of the private homes.

2. Multiple protections, full-stroke anti-falling system, emergency descent device, anti-overload device, safety touch panel and other protective measures.

3. As residential cargo lift for sale, it's special facilities to meet the needs of elderly and handicapped persons, including wheelchair users.

4. Quiet, smooth, jerk-free movement of the lift and Controls to have ease of operation.s.

Wheelchair Lift Customization

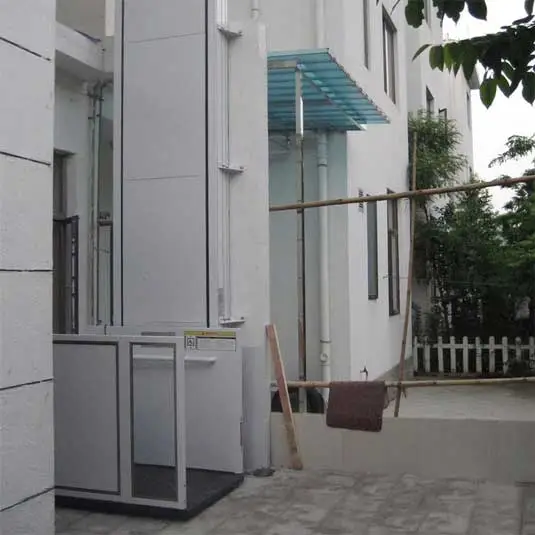

The wheelchair lift helps disabled and elder people access into two-level building.The size of our elevator car can be customized. The standard car is 1000 * 1000. If you need to place a wheelchair or need more space, we can customize it for you. The bearing capacity of the car can reach 400kg and can accommodate 3-4 adults.

Details of Wheelchair Lift

Model	FU2510	FU2515	FU2520	FU2525	FU 2530	FU 2535	FU2540	FU2550	FU2560
Platform Size(mm)	1430*1000	1430*1000	1430*1000	1430*1000	1430*1000	1430*1000	1430*1000	1430*1000	1430*1000
Lift Capacity(KG)	250	250	250	250	250	250	250	250	250
Lifting Height(mm)	1000	1500	2000	2500.0	3000	3500	4000	5000	6000
Overall Size(mm)	20001430 1300	25001430 1300	30001430 1000	35001430 100	40001430 1000	46001430 1000	51001430 1000	61001430 1000	71001430 1000
Groos Weight with Package(KG)	450	550	700	850	900	1000	1050	1200	1300
Net Weight(KG)	350	450	550	700	780	850	880	1000	1100
Lifting Speed(mm/s)	66
Control Voltage(V)	24
Motor Power(Kw)	2.2
Imput Power(V)	As Per Customer Local Standard
Package Size(mm)	22001600 1600	27001600 1600	32001600 1600	37001600 1600	42001600 1600	48001600 1600	53001600 1600	63001600 1600	73001600 1600
Surface Treatment	Plastic Spraying
Mast Material	Aluminum Alloy
Warranty	24Months
Working Temperature	-10°~60°( under low temperature can choose antifreeze hydraulic oil)

Factors to Consider When Choosing the Right Loading Ramp for Business

Safely Device: Reliable

Overload protection: Hydraulic unit with overload protection device. If overload, the hydraulic station automatically relief pressure and stop running.
Emergency Stop: The lift can be stopped immediately in case of any emergency.
Emergency Lowering: The platform can be lowered down manually in case of power failure.
Explosion-proof valve: The hydraulic system is equipped with explosion-proof valves, which can prevent the sudden drop of the platform if the oil pipe breaks.
Safe sensor: When the platform declines, if it touches anything, it will be stopped, so it can protect goods or operators. (Optional).

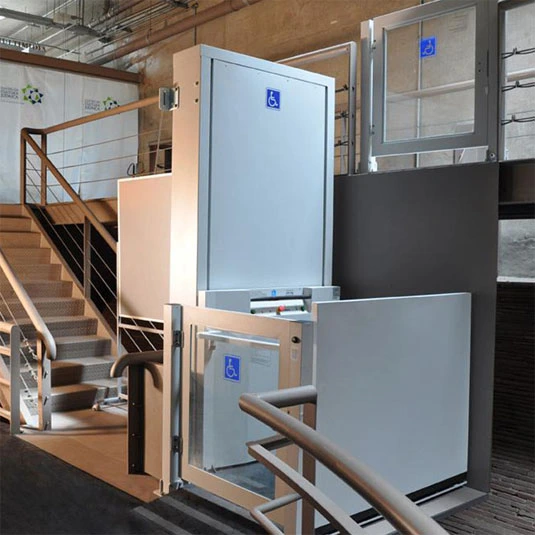

Advantages of Wheelchair Lift

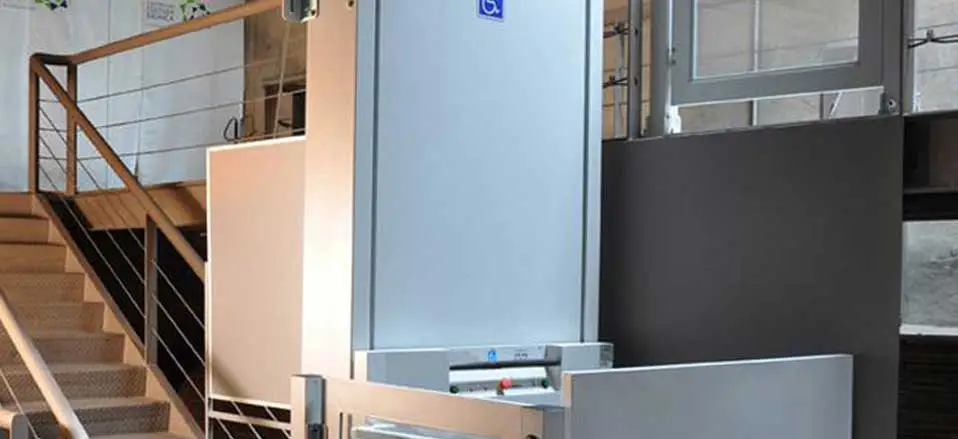

Exterior Handicap Lifts Commercial

The wheelchair lift help disabled and elder people access into two-level building.The size of our elevator car can be customized. The standard car is 1000 * 1000. If you need to place a wheelchair or need more space, we can customize it for you. The bearing capacity of the car can reach 400kg and can accommodate 3-4 adults.
