model | Bearing capacity(KG) | Platform size(mm) | Up lift height(mm) | Downward height(mm) | Fuselage weight(kg) |
GDDCQ-1 | 3000 | 2000*2000 | 600 | -200 | 600 |
GDDCQ-2 | 6000 | 600 | -200 | 700 | |
GDDCQ-3 | 8000 | 600 | -200 | 800 | |
GDDCQ-4 | 10000 | 600 | -200 | 1000 | |
GDDCQ-5 | 12000 | 600 | -200 | 1200 | |
GDDCQ-6 | 3000 | 2000*2500 | 600 | -200 | 700 |
GDDCQ-7 | 6000 | 600 | -200 | 800 | |
GDDCQ-8 | 8000 | 600 | -200 | 900 | |
GDDCQ-9 | 10000 | 600 | -200 | 1100 | |
GDDCQ-10 | 12000 | 600 | -200 | 1300 | |
How do I get a quote if all models are not right for you? (Any size can be customized) | |||||
Please tell me: 1. Load capacity 2. Lifting height 3. Platform size |

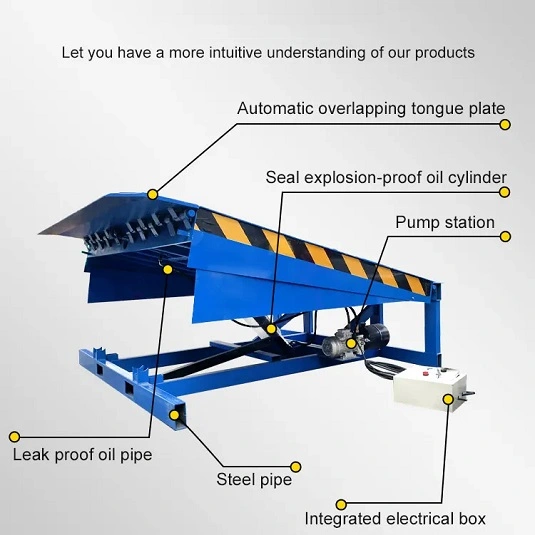

1) Thickened laminate
The table adopts special diamond mesh plate, with reliable strength, to ensure that long time use without deformation
2) High pressure pump station
3) Special hydraulic pump station, more powerful. Good sealing performance and long service life.
4) High pressure explosion-proof cylinder
Large bearing capacity, selection of high-quality oil cylinders, high-pressure explosion-proof, stable performance, and low failure rate
5) Integrated distribution box
Integrated distribution box designed in the stationary loading dock ramps, easy to operate, with stable power.
