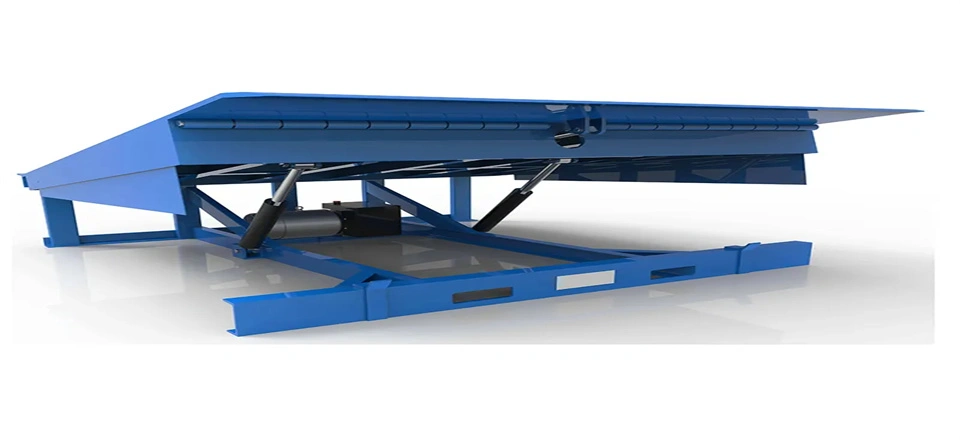

Fixed Loading Platform

Name: Fixed Loading Platform
Brand: Shandong Foru Tech Co., Ltd.

The fixed loading ramp adopts imported hydraulic power unit drive device. Beautiful appearance, stylish, flexible account opening, safe and reliable, stable operation, low noise, no leakage, and easy to operate.

Fixed boarding bridge is a special auxiliary equipment for loading and unloading goods. Its height adjustment function can build a bridge between the truck and the cargo, its height can be adjusted according to the different heights of the truck, forklifts and other handling vehicles can directly drive into the truck interior for batch loading and unloading of goods, only one person needs to operate. This equipment can help enterprises reduce so much labor, improve work efficiency, speed up the flow of goods, and thus achieve greater economic benefits.

Details of Fixed Loading platform

model	Bearing capacity(KG)	Platform size(mm)	Up lift height(mm)	Downward height(mm)	Fuselage weight(kg)
GDDCQ-1	3000	2000*2000	600	-200	600
GDDCQ-2	6000		600	-200	700
GDDCQ-3	8000		600	-200	800
GDDCQ-4	10000		600	-200	1000
GDDCQ-5	12000		600	-200	1200
GDDCQ-6	3000	2000*2500	600	-200	700
GDDCQ-7	6000		600	-200	800
GDDCQ-8	8000		600	-200	900
GDDCQ-9	10000		600	-200	1100
GDDCQ-10	12000		600	-200	1300
How do I get a quote if all models are not right for you? (Any size can be customized)
Please tell me: 1. Load capacity 2. Lifting height 3. Platform size

Advantages of Fixed Loading platform

Anti-roll skirting boards

Set anti rolling skirting plates on both sides to prevent accidental injury caused by toes extending into the platform

Full length shaft connection

The use of anti slip patterned steel plates provides a good anti slip

performance for the platform.Load up and down, no sideslip.Make the transportation work simple, convenient, safe and reliable

preferred material

The equipment frame adopts rectangular pipe steel, full welded structure, large strength and pressure resistance, and no deformation when used for a long time with high load

Sufficient supply

We are a professional manufacturer of hydraulic lifts in Jinan, China, with sufficient supply and affordable price.Each machine is inspected and tested before delivery.
