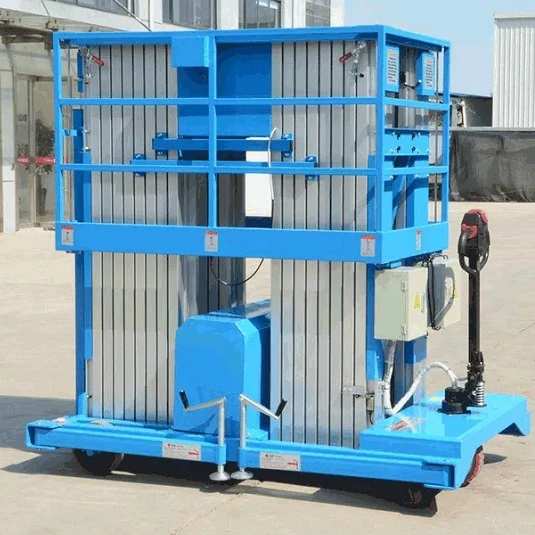

10-16m Four Mast lifts

Name: 10-16m Four Mast lifts
Brand: Shandong Foru Tech Co., Ltd.

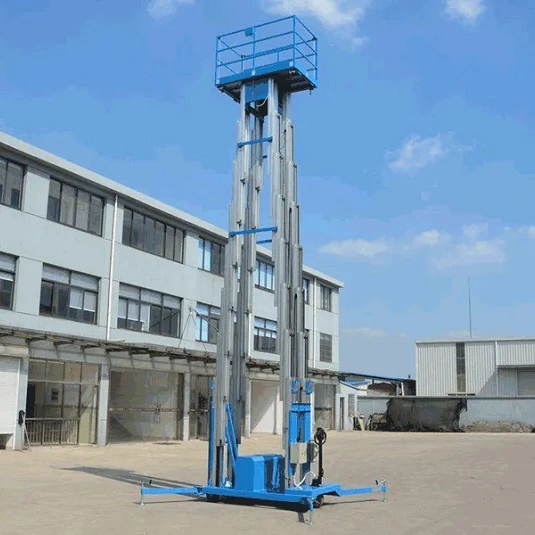

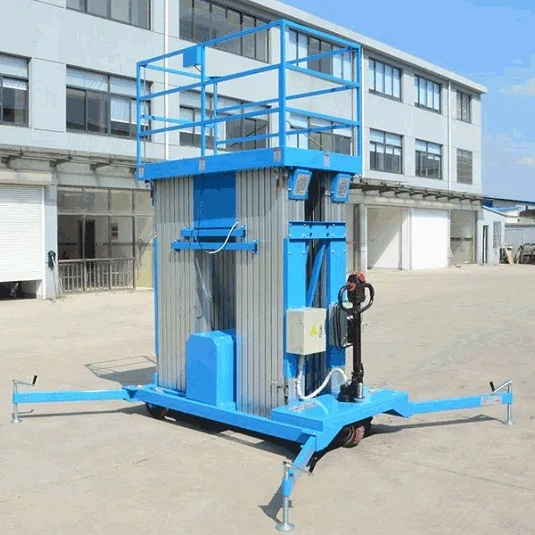

Four mast lift is also like three mast lift, it just has four aluminum alloy supports. The lifting height of it is 12-18m, and it can load 200kg.

And Foru mast lift& warehouse freight elevator factory can customize according to your requirements. Like color, size, voltage etc.

Details of 10-16m Four Mast lifts

Name	Model	Platform height	Platform capacity	Platform Size	Power source	Total weight	Dimension(LWH)
Four mast	FORU 12-4	12m	200kg	1.57*0.9m	2.2kw/220V/380V	1050kg	1.91.22.0m
	FORU14-4	14m	200kg	1.57*0.9m	2.2kw/220V/380V	1150kg	1.91.22.3m
	FORU10-4	16m	200kg	1.57*0.9m	2.2kw/220V/380V	1250kg	1.91.22.7m
	FORU18-4	18m	200kg	1.57*0.9m	2.2kw/220V/380V	1480kg	2.01.42.96m
Standard voltage :220V 50HZ 1 phase , can be customized according to different country.
Optional configuration: battery +AC power for platform raise and down assistant move system
Lifting height above 18m,please contact us for more details.
8m 10m 12m Hydraulic Ladder Mast Electric Man Aluminum Alloy Lift Platform

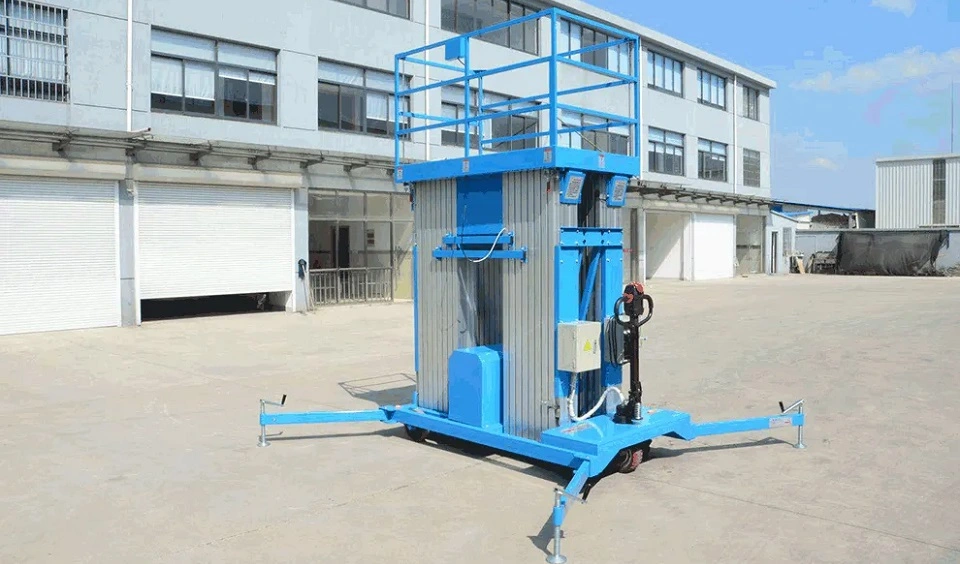

Four Mast Lift 960

This series of products subject structure using high-strength aluminum alloy material.
The equipment takes up small spaces , light-weight, mobile flexible, looks beautiful.
Electrical control or manual pump control when the electricity is not available.
Two control panel: one is hand button, which may be placed in any position on the table rail for the convenience of operation. The other is fixed on the electric-control box, which is supported with emergency stop button for prevention of any accident.
Easily pushed around to the designated sites.
Low energy consumption, no pollution, do no damage to the grounds.
The power sources can be 110V, 220V, 380V, AC power, DC power, depending on the local power sources.
