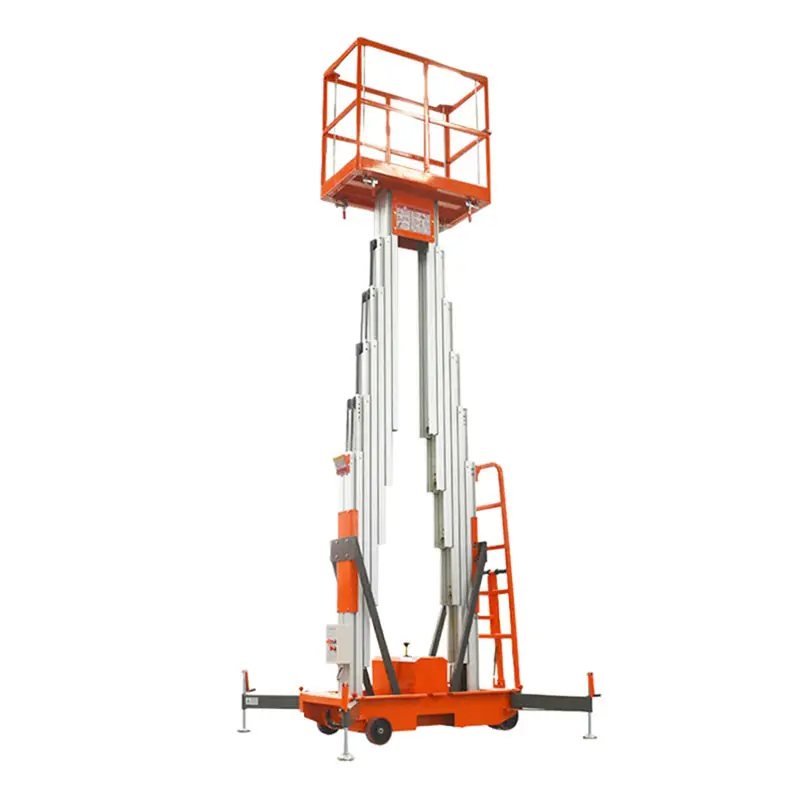

6-14m Double Mast Lifts

1. 6-14m double mast lifts are mainly used for the installation and maintenance of the narrow spaces such as star hotels, modern workshops, business hall, hotels, lobby, restaurant, railway stations, exhibition hall and shopping malls.

2. The double mast goods lift's lifting height ranges from 4m to 18m and lifting capacity varies from 100 to 200kg. The power sources could be 110, 220V, 380V or chargeable battery.

3. The control panels of double mast hydraulic goods lift are available both on the lift platforms and the ground.

4. Compared with cargo elevators for sale, they are more portable and can be moved flexibly between different work locations.

Details of 6-14m Double Mast Lifts


Name

Model

Max. lifting height (m)

Load capacity (kg)

Platform size(m)

voltage

(V)

power

(kw)

Machine weight (kg)

Overall dimensions(m)

Double mast

GTWY6-200-2

6

300

1.2*0.63

220v

1.5

510

1.55*0.85*2.0

GTWY8-200-2

8

300

1.2*0.63

220v

1.5

550

1.55*0.85*2.0

GTWY10-200-2

10

250

1.5*0.63

220v

1.5

690

1.84*0.85*2.0

GTWY12-200-2

12

200

1.5*0.63

220v

1.5

730

1.84*0.85*2.0

GTWY14-200-2

14

150

1.5*0.63

220v

1.5

790

1.95*1.05*2.39





Safety Precautions of 6-14m Double Mast Lifts

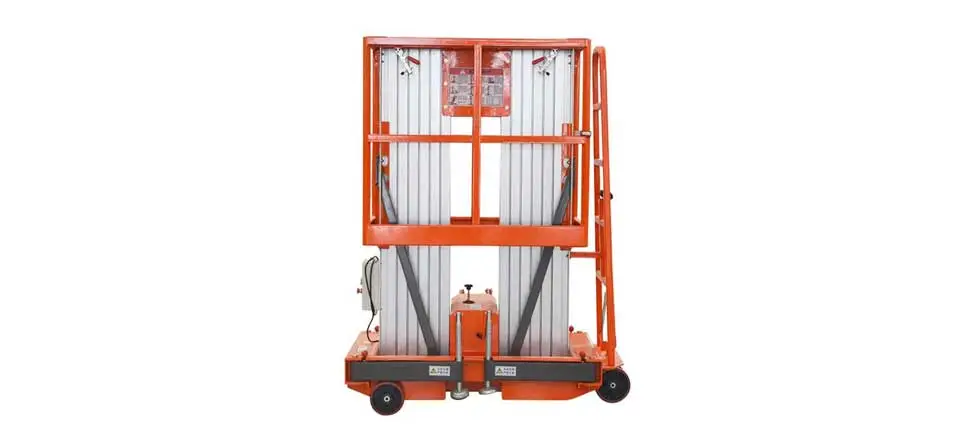

Handicap Lift


A. Explosion-proof Valves

Function: These valves are designed to protect the hydraulic pipe system.

Benefit: In the event of a hydraulic pipe rupture, the explosion-proof valves will prevent any sudden and dangerous release of hydraulic fluid, ensuring the safety of both the operator and the double mast goods lift.


B. Spillover Valve

Function: The spillover valve is crucial for regulating the hydraulic pressure within the system.

Benefit: By preventing excessive pressure build-up when the double mast hydraulic goods lift is in operation, this valve ensures smooth and safe lifting. It also allows for pressure adjustments to accommodate different load requirements, enhancing the versatility and safety of the dual mast lift.


C. Emergency Decline Valve

Function: This valve is a critical safety feature for emergency situations.

Benefit: In the event of an emergency, the emergency decline valve allows the dual mast lift to be safely lowered, protecting both the cargo and personnel. This feature is essential for ensuring a quick and controlled descent, minimizing the risk of accidents.



Advantages of 6-14m Double Mast Lifts


  1. The lift machine for sale is light weight. The lightweight design of our double mast lifts makes them incredibly easy to maneuver, allowing for quick and efficient operation by just two people.


  2. The beautiful structure of our double mast lifts is another significant advantage. With a sleek and modern design, these lifts not only perform well but also look good in any setting. The compact structure and small size in the transport state mean that these lifts can easily enter narrow and small areas, making them highly versatile and suitable for a wide range of applications.

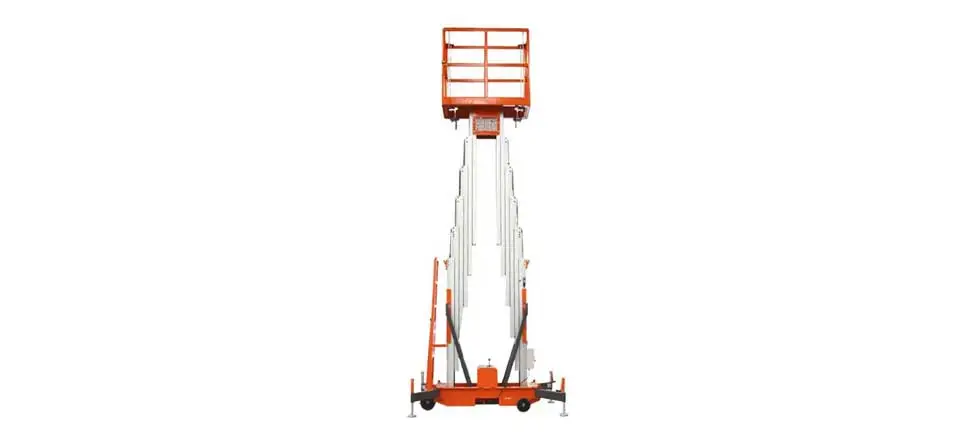

Handicap Hydraulic Lift

  1. Safety is a top priority in the design of our double mast hydraulic goods lift. Each lift is equipped with advanced safety protection devices and an imported pump, which significantly increases the service life and provides an added layer of safety assurance.


  2. In addition to their practical benefits, our double mast goods lifts are also designed for ease of use. The compact and flexible design allows for easy transportation and setup, making them ideal for both indoor and outdoor use. Whether you need to lift goods in a warehouse, a construction site, or any other setting, our double mast lifts provide the perfect solution.



Power Supply & Applicable Place of 6-14m Double mast lifts

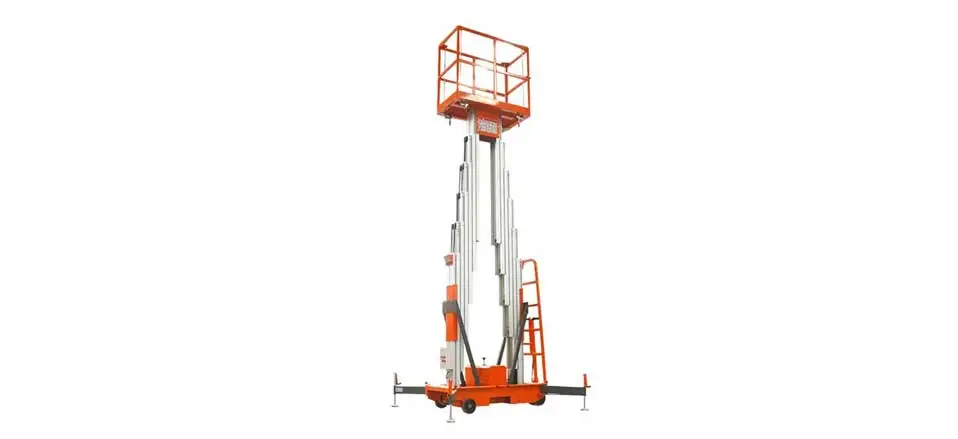

Handicap Lift Cost


Electric Powered / AC Powered Double Mast Lifts

When electricity is readily available at your workplace, our electric-powered double mast lifts are the ideal choice, especially for indoor use. These lifts are designed to operate quietly and efficiently, ensuring a smooth and seamless lifting experience without any noise or air pollution. The electric-powered dual mast lifts are perfect for environments where maintaining a clean and quiet atmosphere is crucial, such as warehouses, factories, and indoor construction sites.


Battery Powered / DC Powered Double Mast Lifts

For outdoor use or in locations where electricity is not readily available, our battery-powered double mast goods lift offer the perfect solution. These lifts are equipped with high-capacity batteries that provide reliable power, allowing you to operate the lift efficiently even in remote or off-grid areas. Like their electric counterparts, the battery-powered dual mast lifts also operate with minimal noise and zero air pollution, making them an environmentally friendly option for outdoor applications.

FAQs on 6-14m Double Mast Goods Lift

What is the height range of this aluminum aerial work platform?

High-configuration double mast aerial work platform is 8-16m, and the load capacity is 150-300kg.

How long is your delivery time?

Regular products take 3-5 days, customized products take 10-15 days after receiving your deposit.

How about the warranty time?

One-year warranty.

What is the driving force of this aluminum aerial work platform?

Battery power, AC+DC power for your reference.
