Model | Load capacity (t) | Lifting height (mm) | Platform size (mm) |
SJG-0.5 | 0.5 | 500 | 1220*700 |
SJG-1.0 | 1 | 1030 | 1220*700 |
SJG-2.0 | 2 | 1210 | 1520*700 |
SJG-3.0 | 3 | 1430 | 2000*1500 |
SJG-4.0 | 4 | 1730 | 2440*1800 |
SJG-5.0 | 5 | 710 | 1220*700 |
SJG-6.0 | 6 | 1080 | 1400*1000 |
SJG-7.0 | 7 | 2700 | 5500*3000 |
SJG-8.0 | 8 | 1910 | 2550*1500 |

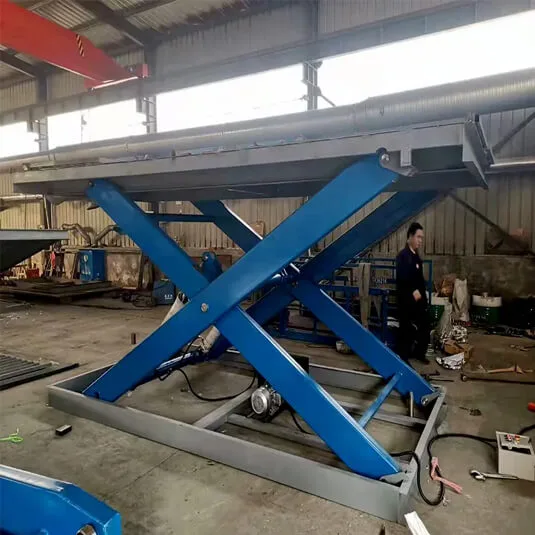

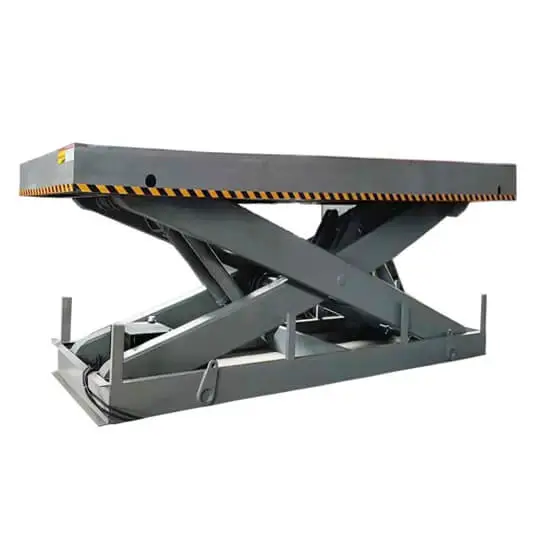

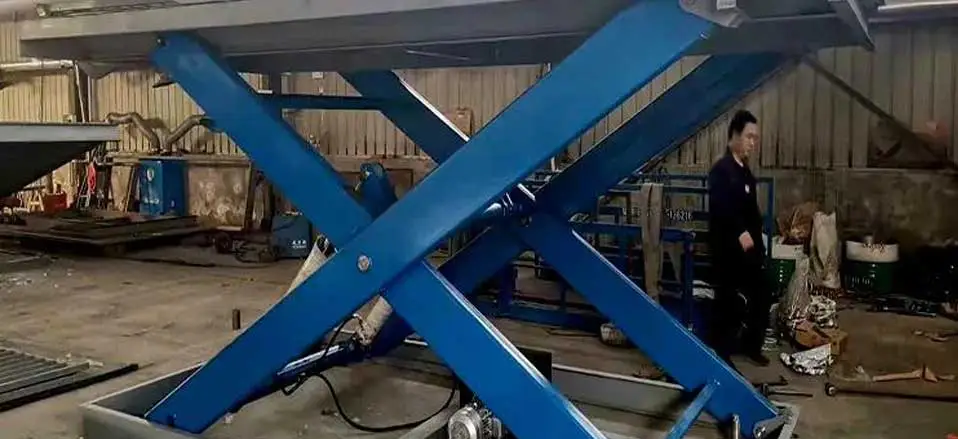

The stationary lift platform adopts a steel frame structure or high-strength steel plate structure, bearing capacity from 0.1 to 100 tons, product size and equipment size can be customized according to user needs, and operation mode can be divided into upper and lower control and ground single control. The stationary scissor lift can also be raised and lowered, with multi-layer control, in order to meet various special needs, the fastest time, and the best solution.
