vertical mast lift

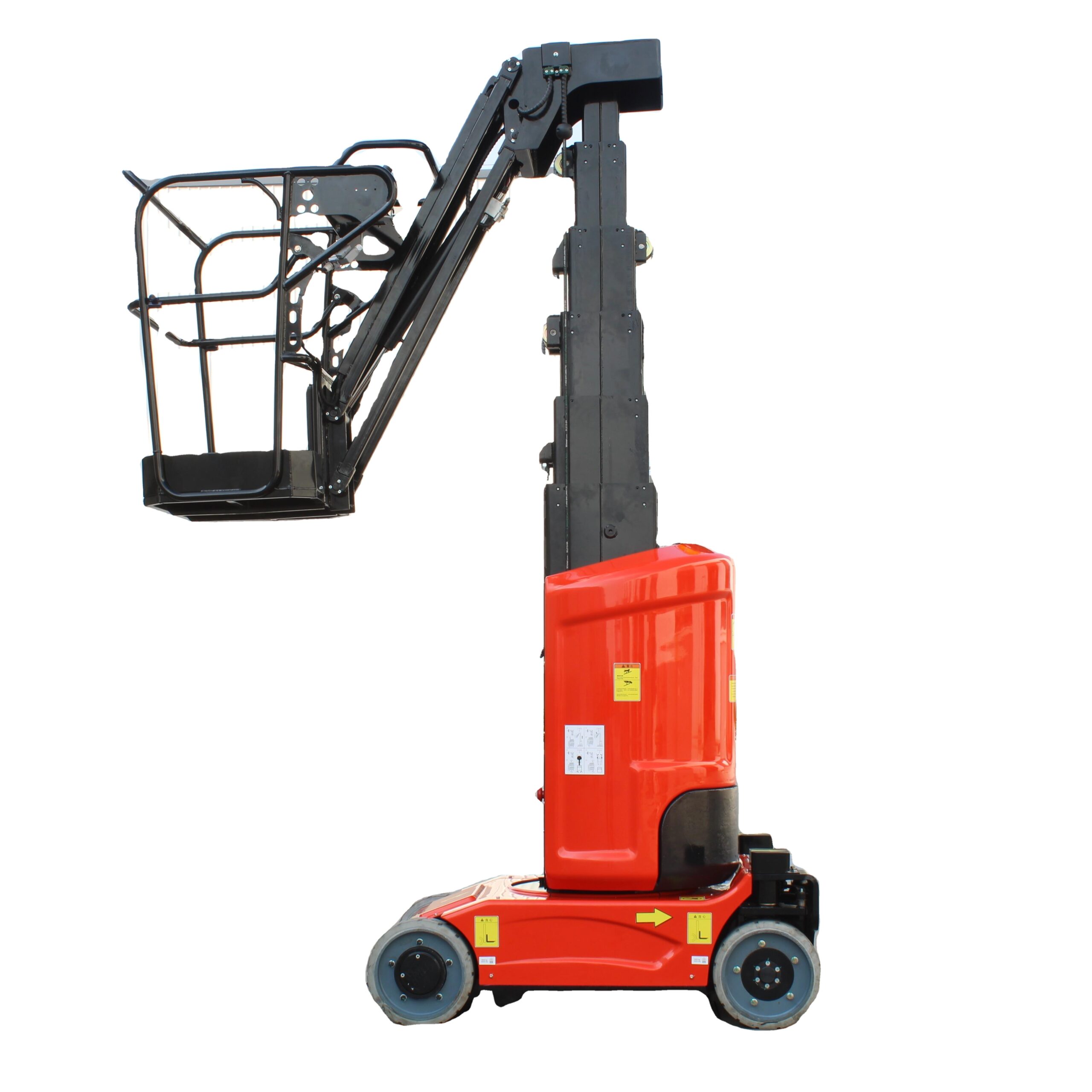

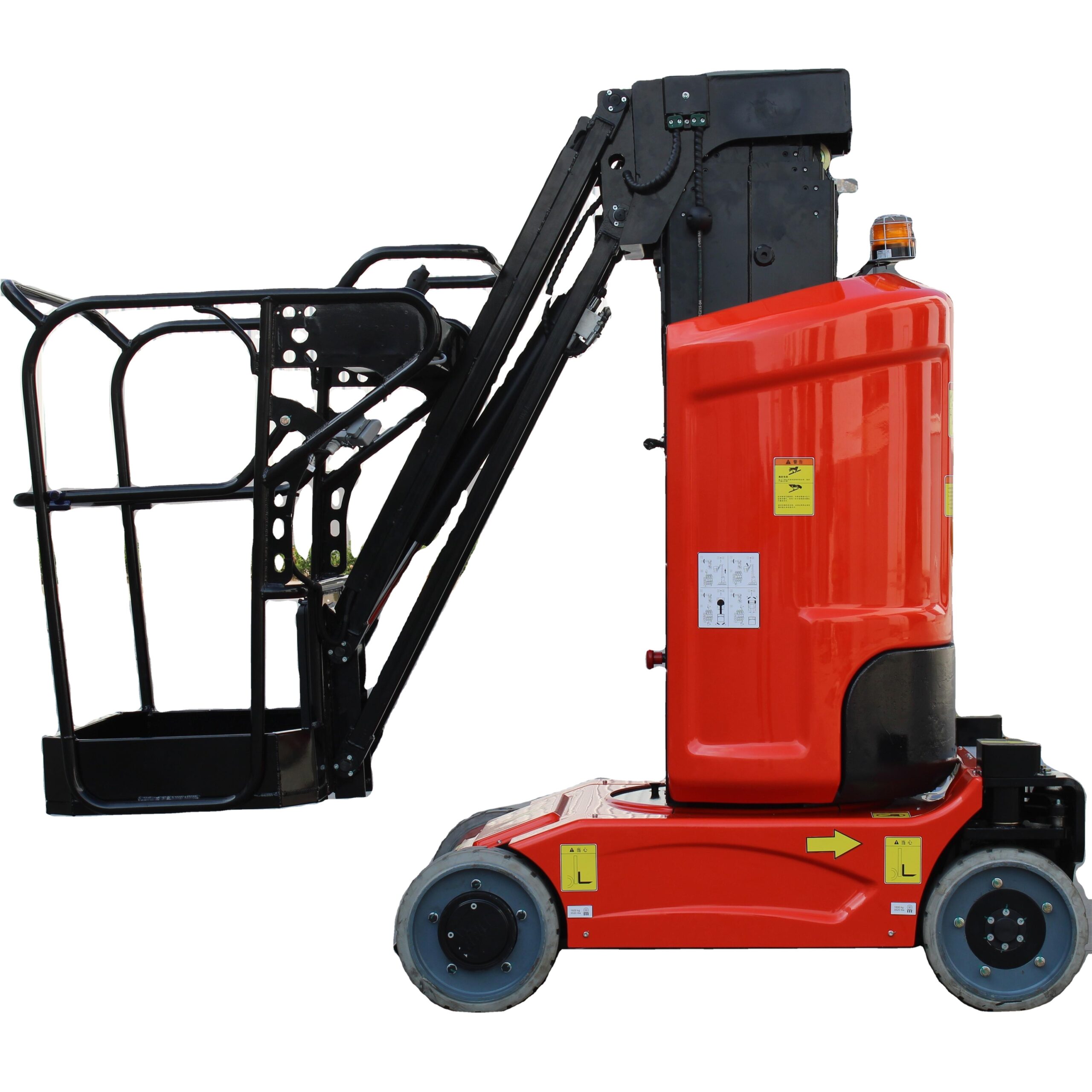

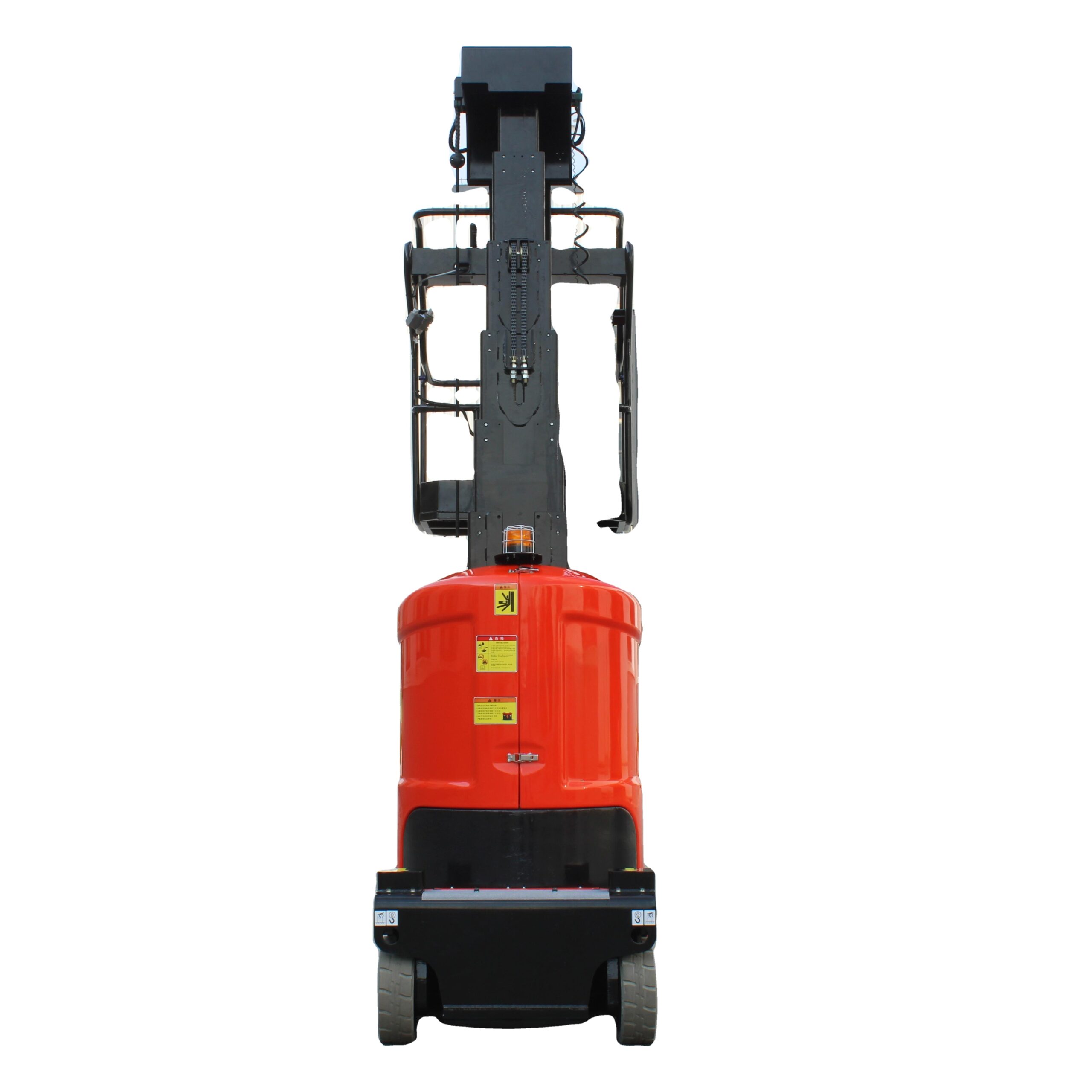

Vertical Mast Lift: Compact, Precise Solution for Aerial Work

Elevate your aerial work efficiency with our premium Vertical Mast Lift – the ultimate compact and precise aerial platform designed for indoor and outdoor maintenance, installation, warehousing, and event setup. Engineered with a single or dual mast structure, our vertical mast lift delivers stable vertical lifting, minimal space occupation, and easy maneuverability, making it the ideal choice for narrow spaces and high-precision aerial tasks across global industries.

Core Advantages of Our Vertical Mast Lift

Combining lightweight design, advanced lifting technology, and user-centric safety features, our Vertical Mast Lift stands out as a reliable tool for professional aerial work. Here’s what makes it superior:

1. Compact Design & Flexible Mobility

Our vertical mast lift features a slim profile with a minimum width of 700mm-900mm (depending on model), allowing easy access through standard doorways, narrow aisles, and tight spaces in warehouses, shopping malls, and office buildings. The lightweight structure (net weight 300kg-800kg) enables convenient movement, and the non-marking polyurethane wheels protect polished floors from scratches, making it perfect for indoor use. Self-propelled models are equipped with 2-wheel or 4-wheel drive, ensuring smooth mobility on flat surfaces, while the small turning radius (≤1.2m) enhances maneuverability in confined areas.

2. Stable Vertical Lifting & Precise Positioning

Equipped with a high-precision hydraulic lifting system and reinforced mast structure (aluminum alloy or high-strength steel), our vertical mast lift ensures stable vertical lifting without lateral sway. The lifting speed ranges from 0.15m/s to 0.3m/s, and the platform can be positioned accurately at any height within the working range, meeting the needs of delicate tasks such as electrical wiring, lighting installation, and glass cleaning. The dual-mast models offer enhanced stability, with a maximum working height of up to 14m, while single-mast models are more lightweight for basic aerial work.

3. User-Friendly Operation & Comfort

The vertical mast lift features an intuitive control system that is easy to operate even for first-time users. The control panel is mounted on the platform with large, clear buttons and a digital height display, allowing operators to adjust the height and move the platform with one hand. The spacious working platform (size 1000×600mm to 1600×800mm) provides ample space for operators and tools, and the 1.1m high safety rails with chain barriers ensure safe operation. The ergonomic design reduces operator fatigue during long working hours, and the foldable guardrails save space during storage and transportation.

4. Eco-Friendly & Quiet Operation

Powered by high-capacity lithium-ion batteries (optional lead-acid batteries), our vertical mast lift operates with zero exhaust emissions, making it suitable for indoor spaces and environmentally regulated areas. The DC brushless motor ensures ultra-quiet operation (≤55 decibels), avoiding disturbance to surrounding activities in shopping malls, hospitals, and office buildings. The intelligent battery management system (BMS) monitors battery status in real-time, supporting 6-10 hours of continuous operation on a single charge and extending battery life to 3000+ charge cycles.

5. Comprehensive Safety Protection & Durability

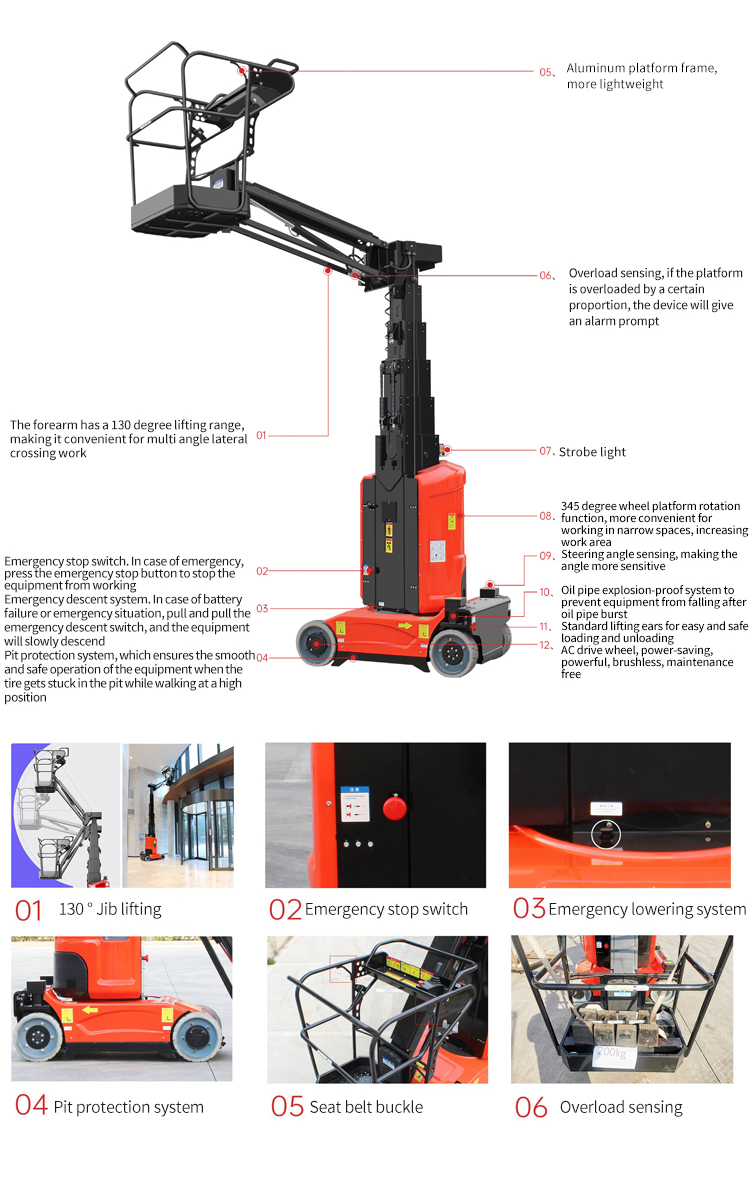

Safety is integrated into every detail of our product design. Key safety features include: overload protection (automatically stops lifting when exceeding rated load), emergency stop buttons on the platform and ground control, anti-tilt sensors (triggers alarm and stops operation when tilting exceeds safe range), and a backup descent system for power failure scenarios. The mast and platform are made of high-quality aluminum alloy, featuring excellent corrosion resistance and durability. The surface is treated with anti-oxidation coating, suitable for indoor and semi-outdoor use (with optional weather protection cover for outdoor use).

Technical Specifications

Our vertical mast lift covers a full range of models to meet diverse aerial work needs. Below are the core specifications of our mainstream models (custom configurations available):

Application Cases

Case 1: Large Shopping Mall Aerial Maintenance

A flagship shopping mall in Europe adopted our VML-S8 self-propelled vertical mast lifts for ceiling lighting maintenance and signage installation. The compact design allowed the lifts to move freely through narrow mall corridors and between storefronts, while the zero-emission and ultra-quiet operation ensured no disturbance to mall customers and businesses. The 8m working height and 150kg load capacity met the needs of carrying operators and maintenance tools, and the precise positioning function enabled delicate lighting installation work. The long-lasting lithium-ion battery supported a full day of continuous operation, improving work efficiency by 40% compared to traditional scaffolding.

Case 2: Warehouse High-Rack Inventory Management

A large logistics warehouse in Southeast Asia used our VML-D10 dual-mast vertical mast lifts for high-rack inventory checking and goods picking. The 10m working height allowed access to the top layers of 9m-high racks, and the 200kg load capacity enabled operators to carry inventory tools and small batches of goods. The self-propelled design and small turning radius made it easy to move between narrow rack aisles, and the non-marking wheels protected the warehouse floor. The stable vertical lifting and safety rails ensured operator safety during high-altitude work, and the battery-powered operation eliminated the need for power cords, avoiding tripping hazards in the warehouse.

Our Advantages & Services

1. Professional Manufacturing & High Quality

As a professional vertical mast lift manufacturer from China’s industrial cluster, we adopt advanced production equipment (CNC machining centers, precision welding robots) and high-quality raw materials. All models comply with international standards such as CE, ANSI/SAIA A92.3, and ISO 9001, undergoing rigorous testing (load testing, stability testing, safety performance testing) before leaving the factory.

2. Comprehensive Customization Capabilities

We provide tailored solutions based on your specific needs, including custom working height, load capacity, platform size, power type (lithium-ion/lead-acid), drive type, and special functions (weather protection cover for outdoor use, remote control operation, extended platform for extra space). Our R&D team has rich experience in aerial work platforms, ensuring the customized product perfectly matches your application scenario.

3. Global After-Sales Support

We have established a global service network covering 40+ countries, with 8 regional service centers and 24/7 technical support. Our services include pre-sales technical consultation, on-site installation and training, spare parts supply (with a 98% spare parts availability rate), and remote fault diagnosis. All products come with a 2-year warranty, and we provide lifelong maintenance guidance to ensure worry-free use.

Get Your Customized Vertical Mast Lift Solution Today

Ready to optimize your aerial work with our compact and precise Vertical Mast Lift? Contact our professional team for a free quote, technical consultation, and customized solution. We offer flexible delivery terms (FOB, CIF, DDP) and fast shipping to meet your project timeline.

Q&A
Q1: What’s the MOQ, and how much discount?A1:MOQ is one set, above 2 sets discount will be 3%

Q2:Provide customize machine Yes or No?

A2:Yes.We can provide customize machine for clients.

Q3:What’s the payment terms?
A3:T/T 30% in advance and balance before shipment or by negotiation.
Q4: Are you a factory or trade company?

A4:We are factory and trade company. FORU is our brand.

Q5:How long is the warranty period?

A5:One year warranty period except for the quick-wear parts.

Q6:Do you have professional engineers?

A6:Yes.We have professional engineers and designers. We can provide OEMproducts.
