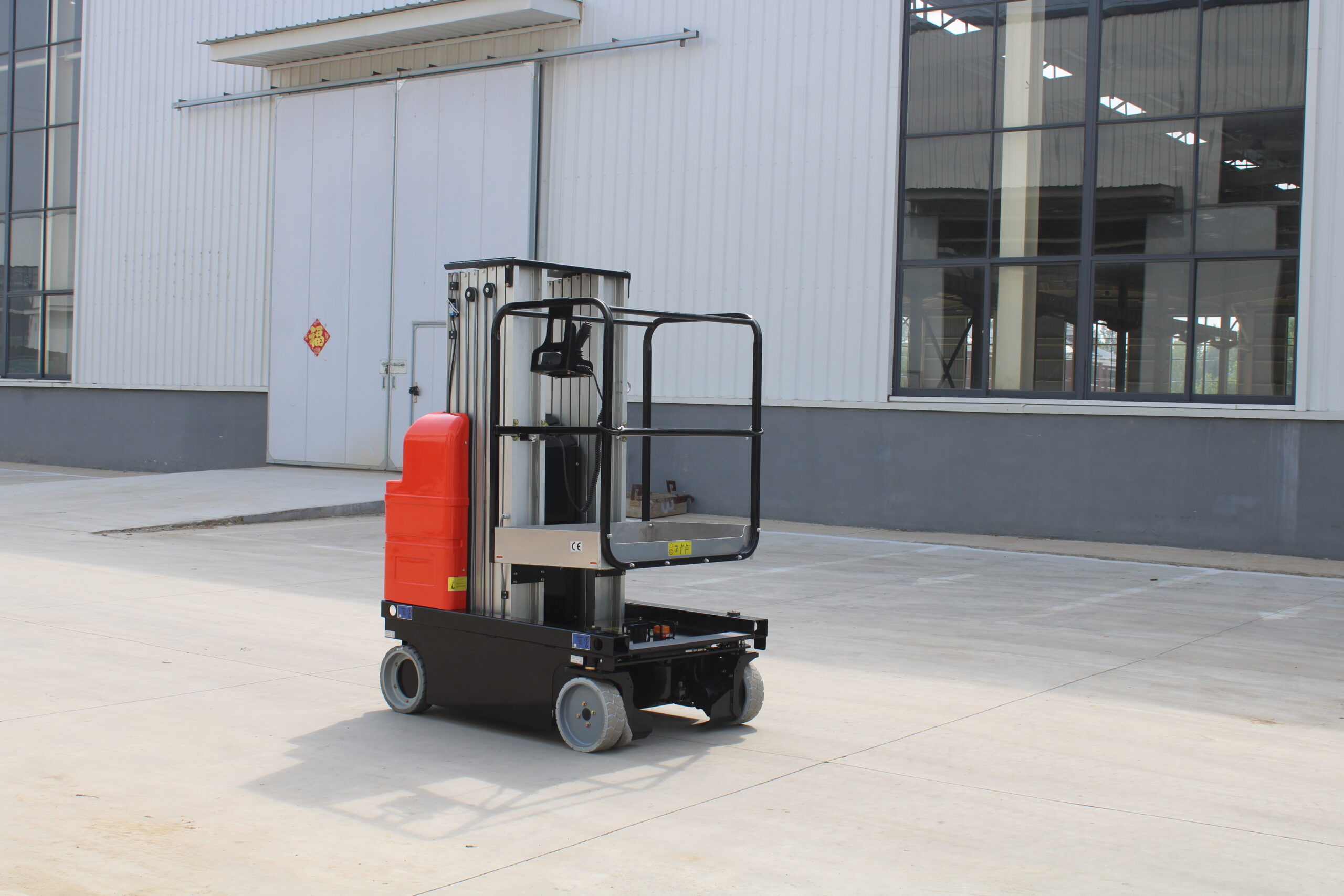

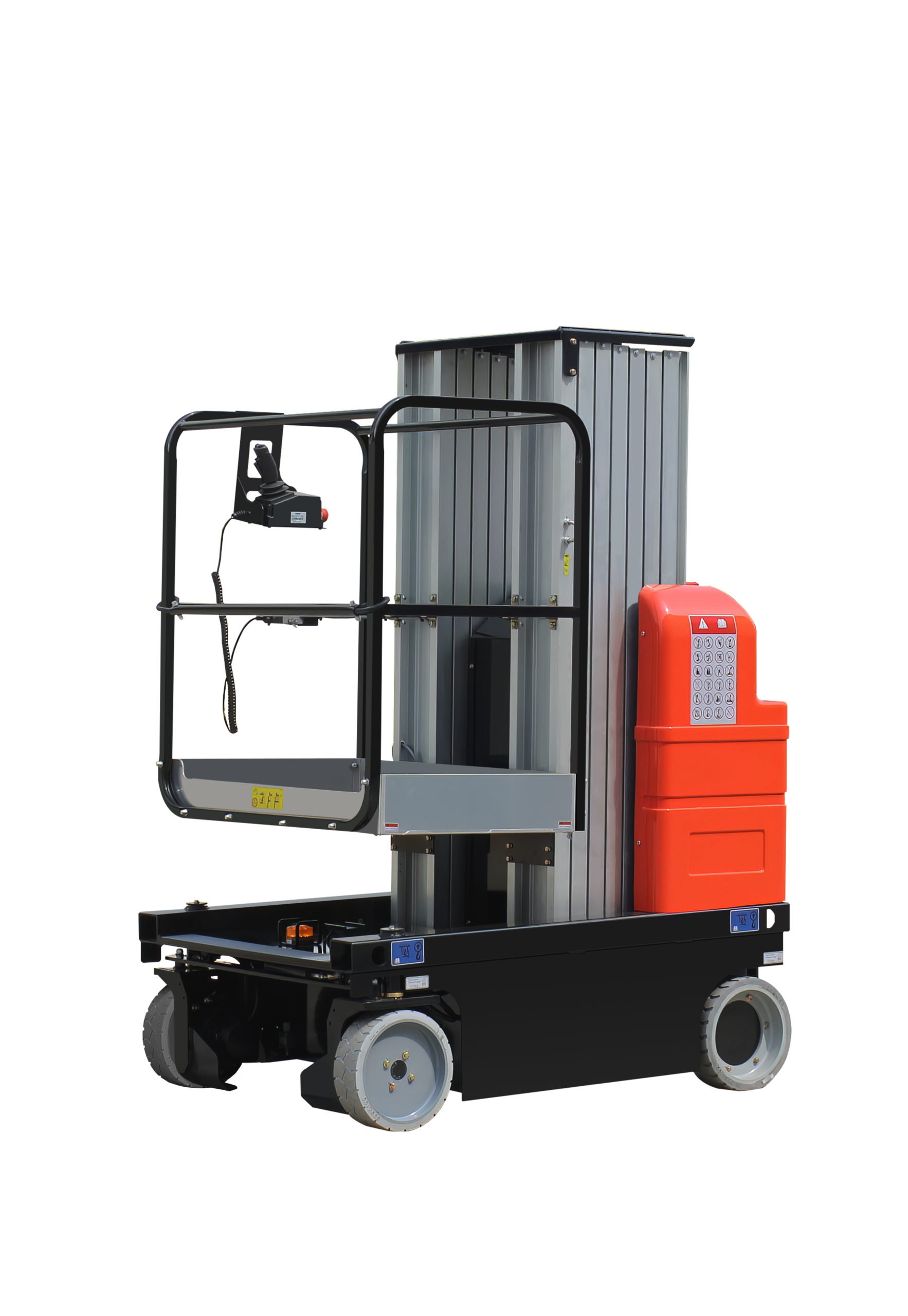

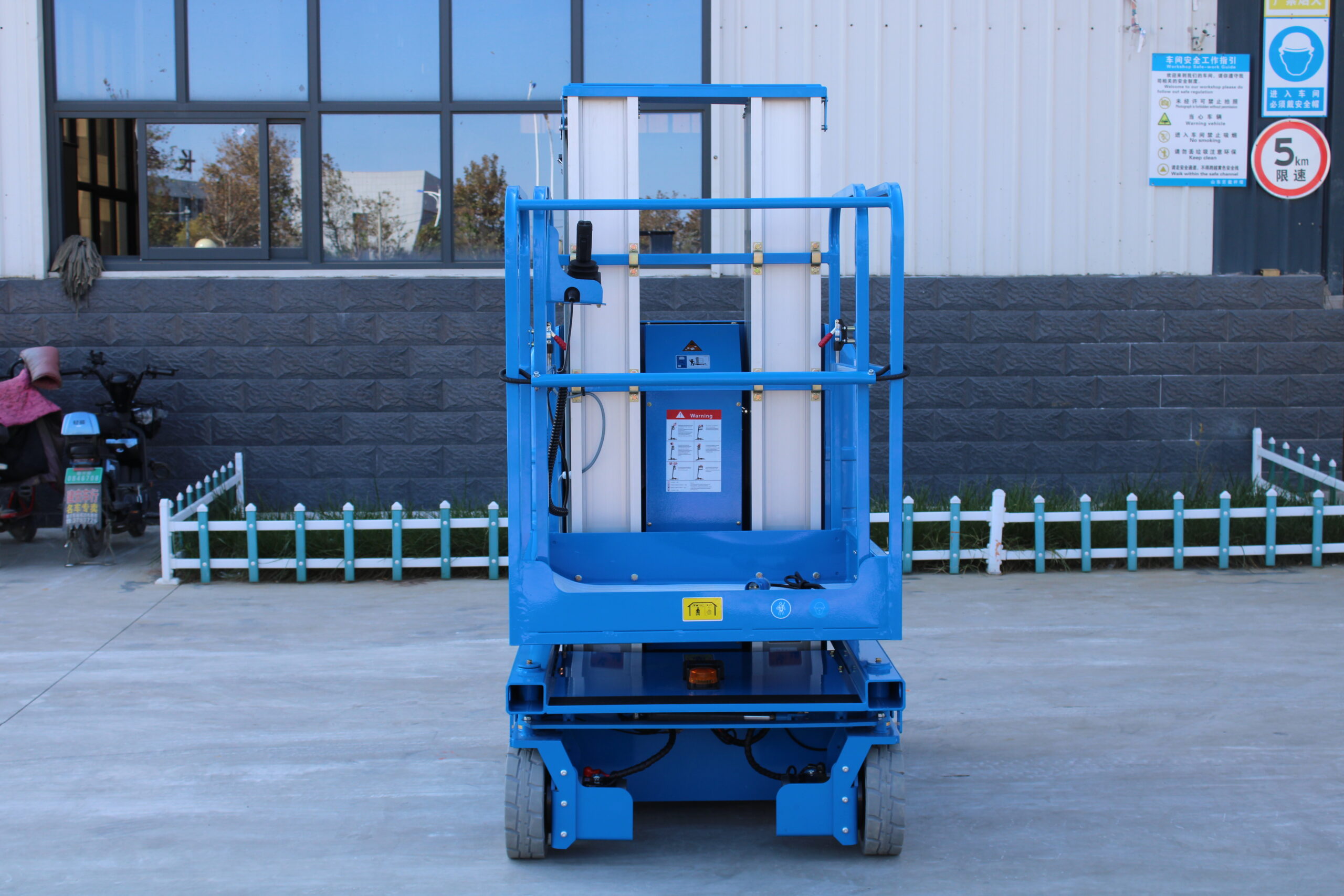

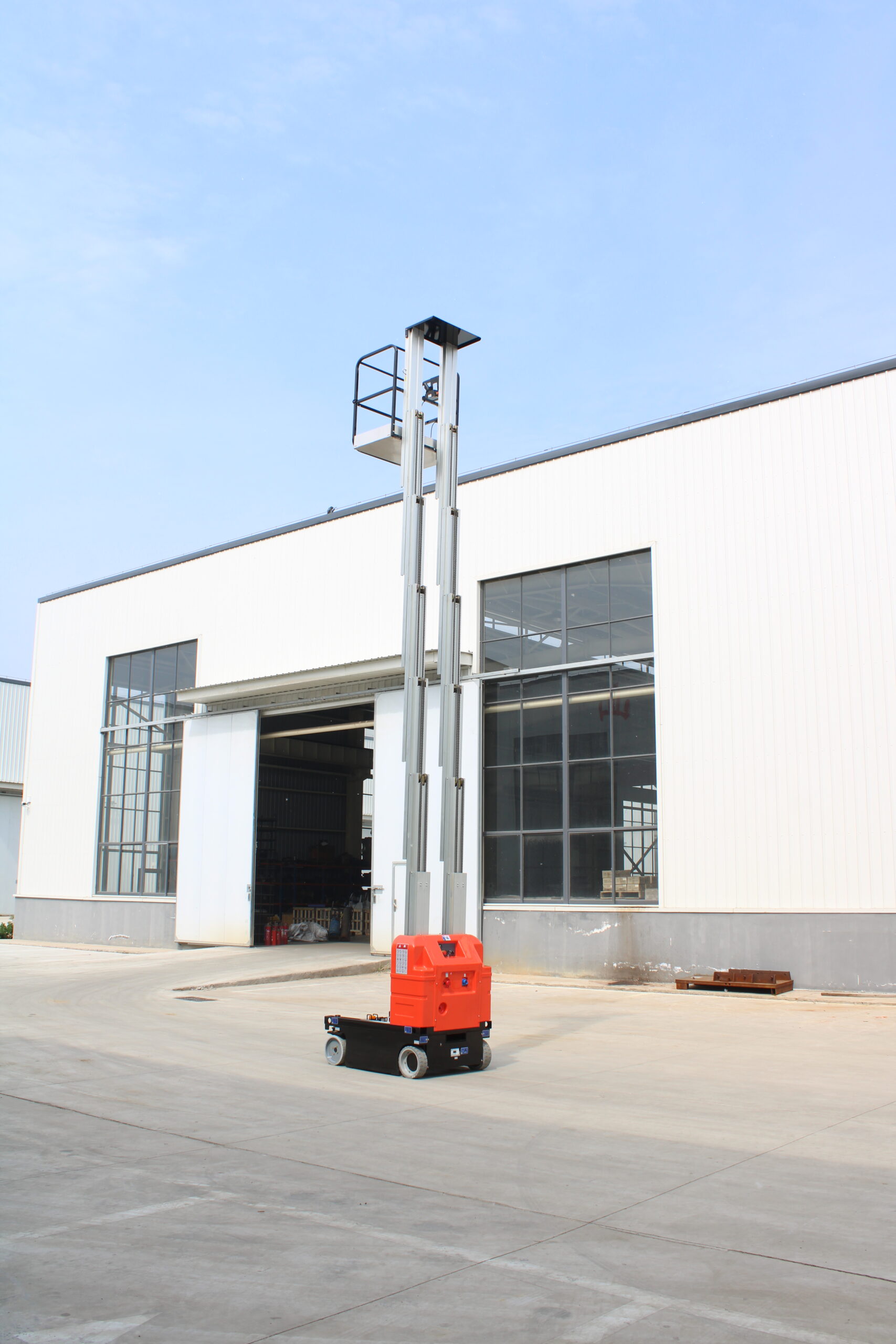

Self-Propelled Vertical Lift: Flexible, Efficient Aerial Work Platform
Unlock seamless aerial operations with our premium Self-Propelled Vertical Lift – a specialized mobile platform integrating independent mobility and stable vertical lifting. Engineered for indoor and semi-outdoor use, this lift eliminates the need for manual pushing or external traction, enabling operators to navigate freely and position precisely at height, making it the ideal choice for maintenance, installation, inventory management, and event setup across commercial and industrial sectors worldwide.
Core Advantages of Our Self-Propelled Vertical Lift
Combining intelligent self-propulsion technology, robust lifting systems, and human-centric safety design, our Self-Propelled Vertical Lift redefines efficiency in aerial work. Here’s what sets it apart:
- Independent Self-Propulsion & Agile Mobility
Equipped with 2WD/4WD drive systems (optional based on model), our self-propelled vertical lift supports free movement in all directions (forward, backward, left, right) with intuitive joystick control. Operators can adjust speed (0-4km/h for ground movement, 0.15-0.3m/s for lifting) with one hand, eliminating the hassle of manual handling. The ultra-small turning radius (≤1.5m) allows easy navigation through narrow aisles, doorways (width ≥800mm), and tight spaces, while non-marking polyurethane wheels protect indoor floors (marble, tile, wooden floors) from scratches.
- Stable Vertical Lifting & Precise Positioning
Adopting reinforced aluminum alloy mast (single/dual configurations) and high-precision hydraulic lifting system, the lift delivers sway-free vertical movement even at maximum height. The platform can be precisely positioned at any point within the working range (6m-14m), supporting delicate tasks like electrical wiring, ceiling inspection, and light fixture installation. Dual-mast models enhance stability for medium-load operations, while single-mast designs maintain compactness for narrow-space work.
- User-Centric Ergonomics & Easy Operation
The spacious working platform (1000×600mm to 1600×800mm) accommodates 1-2 operators plus tools, with integrated tool trays and safety hooks to prevent tool drops. The control panel is angled for optimal visibility, featuring large tactile buttons (suitable for gloved operation) and a digital height display. Emergency stop buttons are installed on both the platform and ground control, ensuring quick response in unexpected situations. Foldable guardrails save space during storage and transportation.
- Eco-Friendly Power & Long-Endurance Performance
Powered by high-capacity lithium-ion batteries (24V/48V), the lift operates with zero emissions and ultra-quiet performance (≤55 decibels) – perfect for noise-sensitive environments like hospitals, malls, and offices. A single charge supports 6-12 hours of continuous operation (meets full work shifts), with fast charging (80% in 1.5 hours) and intelligent battery management system (BMS) to extend battery life to 3000+ charge cycles. Optional diesel-powered models are available for outdoor heavy-duty use.
- Comprehensive Safety & Durable Construction
Safety complies with international standards (CE, ANSI/SAIA A92.3, ISO 9001) with multi-layer protection: overload sensors (cuts off power when exceeding rated load), anti-tilt alarms (triggers at ≥3° tilt), hydraulic safety valve (prevents accidental descent), and 1.2m high anti-fall guardrails with double-locking gates. The entire structure is treated with anti-corrosion powder coating, resisting rust, dust, and humidity, ensuring a service life of 8-12 years under proper maintenance.
Technical Specifications
Our self-propelled vertical lift covers a full range of models for diverse aerial work needs. Below are core specifications of mainstream models (custom configurations available):
| 自行式双柱铝合金平台/SELF-PROPELLED VERTICALLIFT | ||
| 型 号 / M O D E L | AMWP7.5-2100 | AMWP9-2100 |
| 最大工作高度Max.Working Height | 9.50m | 11.00m |
| 最大平台高度Max.Platform Height | 7.50m | 9.00m |
| 平台载重Loading Capacity | 200kg | 150kg |
| 最大工作人数Occupants | 1 | 1 |
| 整车长度OverallLength | 1.46m | 1.46m |
| 整车宽度Overall Width | 1.01m | 1.01m |
| 整车高度Overall Height | 1.99m | 1.99m |
| 平台尺寸Platform Dimension | 1.00m×0.65m | 1.00m×0.65m |
| 轴距Wheel Base | 1.14m | 1.14m |
| 最小转弯半径Turning Radius | 0.3m | 0.3m |
| 行驶速度(收拢状态)Travel Speed(Stowed) | 4km/h | 4km/h |
| 行驶速度(起升状态)Travel Speed(Raised) | 1.1km/h | 1.1km/h |
| 上升/下降速度Up/Down Speed | 48/40sec | 56/49sec |
| 最大爬坡能力Gradeability | 25% | 25% |
| 轮胎(驱动轮)Drive Tyres | φ305×100mm | φ305×100mm |
| 驱动电机Drive Motors | 2×24VDC/0.5kW | 2×24VDC/0.5kW |
| 起升电机Lifting Motor | 24VDC/1.2kW | 24VDC/1.2kW |
| 蓄电池Battery | 2×12V/100Ah | 2×12V/100Ah |
| 充电器Charger | 24V/15A | 24V/15A |
| 整机重量Weight | 1270kg | 1345kg |
Application Cases
Case 1: Large-Scale Mall Renovation & Maintenance
A flagship mall in Europe adopted our SPVL-D12 dual-mast self-propelled vertical lifts for ceiling renovation and signage replacement. The 4WD self-propulsion system allowed flexible movement across the mall’s concrete floors and between storefronts, while the 12m working height covered all ceiling areas. Ultra-quiet operation (≤52 decibels) and zero emissions ensured no disturbance to shoppers and tenants. The precise positioning function enabled delicate installation work, cutting project time by 35% compared to traditional equipment.
Case 2: Industrial Workshop Equipment Inspection
A heavy machinery factory in Southeast Asia used our SPVL-D14 lifts for high-altitude equipment inspection and maintenance. The 4WD drive adapted to slightly uneven workshop floors, and the 250kg load capacity accommodated two operators plus inspection tools. The anti-tilt and overload protection systems guaranteed safety in industrial environments, while the diesel-powered option (backup) supported 24-hour continuous operation during peak maintenance periods. The lifts’ durability and mobility have significantly improved the factory’s inspection efficiency.
Our Advantages & Services
- Professional Manufacturing & Strict Quality Control
As a specialized self-propelled vertical lift manufacturer, we use high-grade aluminum alloy masts, reinforced steel frames, and imported core components (motors, hydraulic valves). Each unit undergoes rigorous testing – mobility performance, lifting stability, and safety function tests – before delivery, complying with global industrial and accessibility standards.
- Customized Solutions for Diverse Needs
We offer tailored configurations to match specific work requirements: custom working height, platform size, power type (lithium-ion/diesel hybrid), drive type (2WD/4WD), and special features (weather protection cover for semi-outdoor use, remote control, extended platform). Our team provides on-site measurement to ensure the lift fits your workplace layout perfectly.
- Global After-Sales Support
With a global service network covering 45+ countries, 10 regional centers, and 24/7 technical support, we offer pre-sales consultation, on-site installation and operator training, spare parts supply (98% availability), and remote fault diagnosis. All products come with a 3-year warranty (extended for safety and drive components) and lifelong maintenance guidance, ensuring worry-free operation.
Get Your Customized Self-Propelled Vertical Lift Solution Today
Ready to upgrade your aerial work efficiency with our flexible and stable Self-Propelled Vertical Lift? Contact our professional team for a free quote, technical consultation, and on-site assessment. We offer flexible delivery terms (FOB, CIF, DDP) and fast shipping to meet your project timeline.
