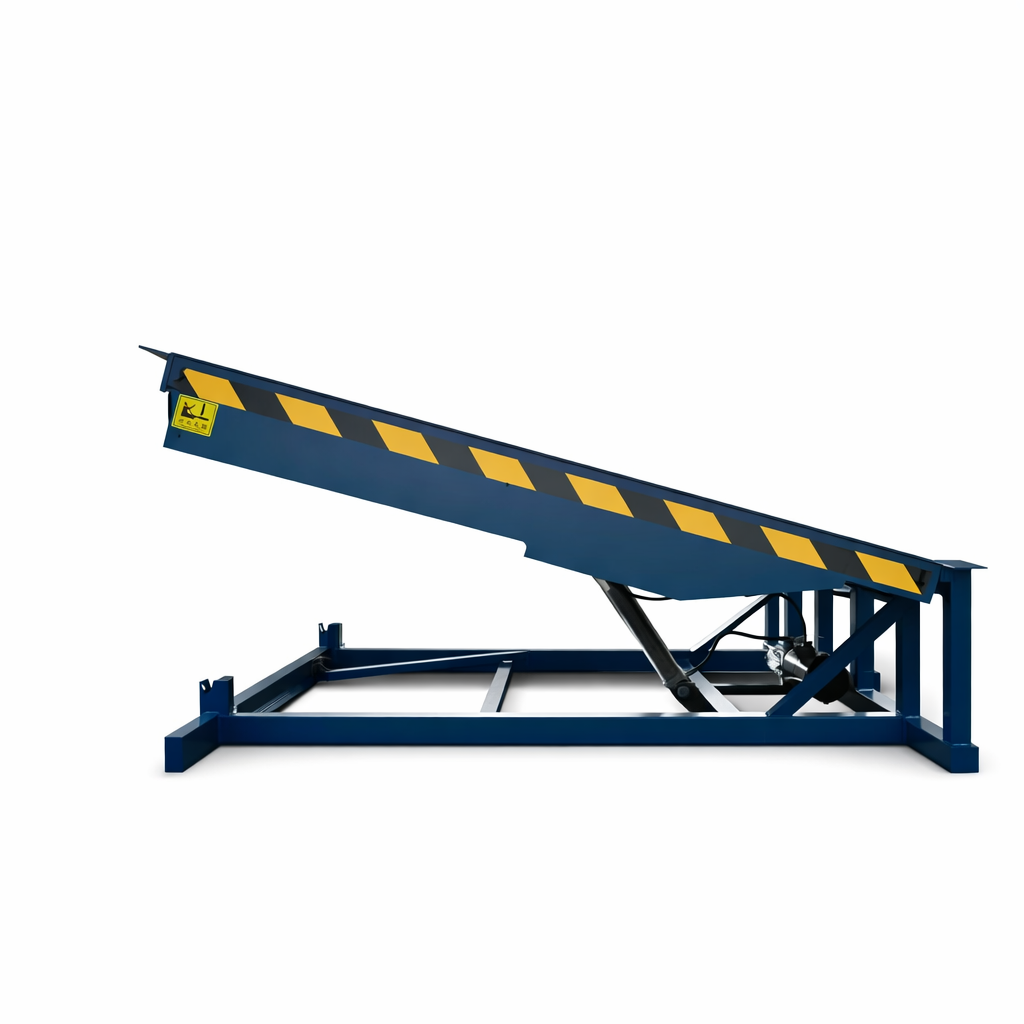

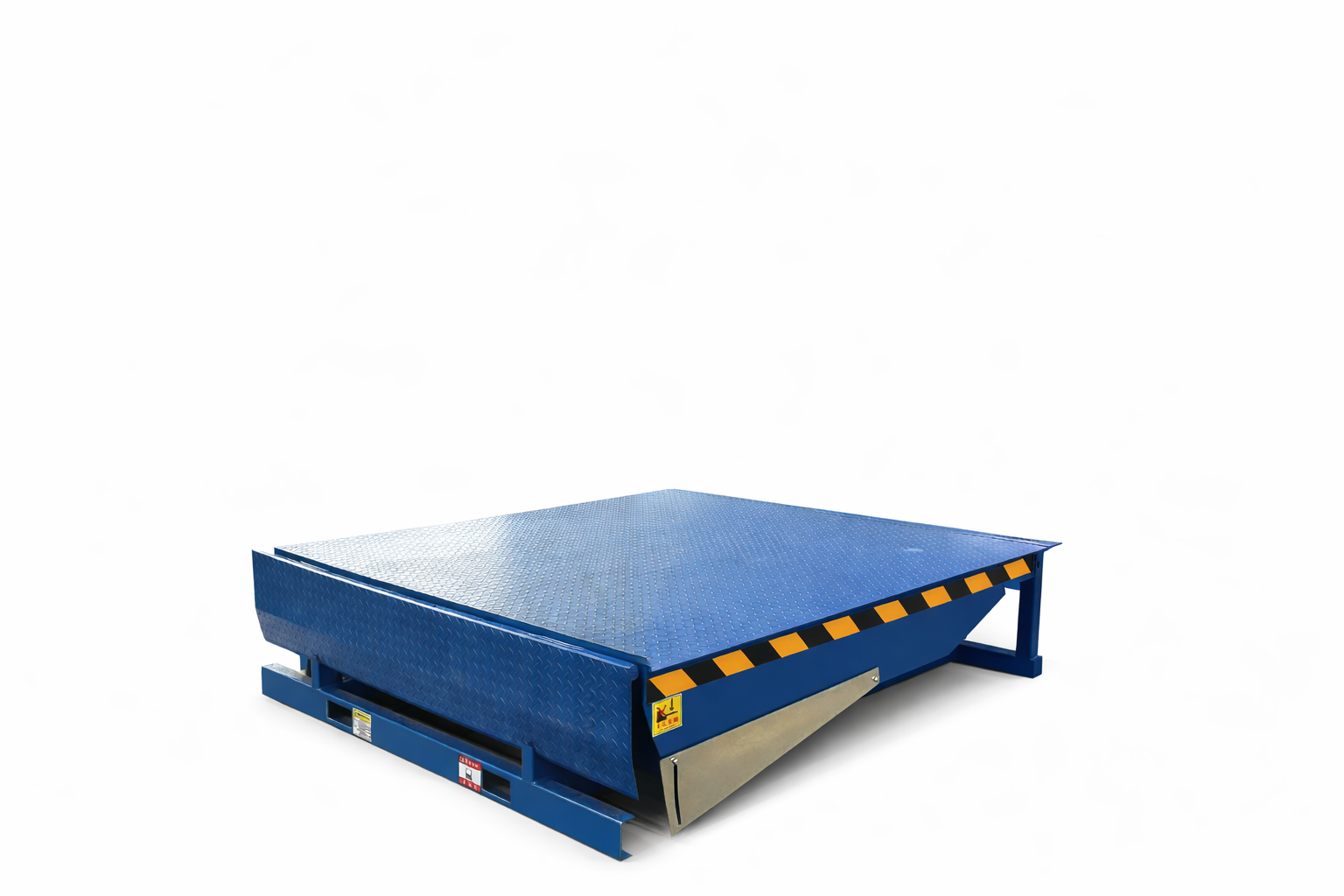

| Fix loading ramp DCQG-8A configuration. | |
| Name | Fix loading ramp |
| Model number | DCQG-8A |
| Platform dimensions (mm)1 |
2000*2000mm(length*width) |
| Overall dimensions (mm)1 |
2000*2000*600(length*width*height) |
| Working range | +400/—300 |
| Driving force(v) | 380V External Power Supply (Single Choice) |
| Motor power(kw) | 1.1kw |
| Origin of hydraulic
system |
Domestic |
| Origin of main sealing components |
Germany,Japan |
| Electrical system | Delixi |
| Control method | Fully electric button control (for fixed boarding bridge) |
| Panel | 6mm patterned steel plate |
| Main beam | 8 rectangular tubes of 60*120*3mm size |
| Underframe | The front frame is a mixed structure of 50*100*3mm/80*4mm manganese steel rectangular tubes. The rear part is 80*80*4mm. The columns are 70*70*3mm and there are 6 of them.Additionally,thereare 80*80 angle steel pieces. |
| Buttress tongue plate | 16mm patterned steel plate |
| Cylinder | One piece each of 80-45;40-25 |
| Impact absorber block | Standard configuration:two sets,as shown in the figure (300*200*100mm) |
| Surface treatment | Painting |
| Installation method | Foundation pit fixation |
| Shipping dimensions (mm) |
2000*2000*600 (length*width*height) |
| Shipment and dispatch | Expansion screws;leveling pads;control box fixing screws;welding rods;
touch-up paint |
Note: This product is continuously improved with technological advancements. The above-mentioned detailed informationsuch as parameters and configurations, as well as any discrepancies from the actual product, shall be subject to the actualproduct.
Q&A
Q1: What’s the MoQ, and how much discount?
A1:MOQ is one set, above 2 sets discount will be 3%.
Q2:Provide customize machine Yes or No?
A2:Yes.We can provide customize machine for clients.
Q3:What’s the payment terms?
A3:T/T 30% in advance and balance before shipment or by negotiation.
Q4: Are you a factory or trade company?
A4:We are factory and trade company. FORU is our brand.
Q5:How long is the warranty period?
A5:One year warranty period except for the quick-wear parts.
Q6:Do you have professional engineers?
A6:Yes.We have professional engineers and designers. We can provide OEMproducts.
