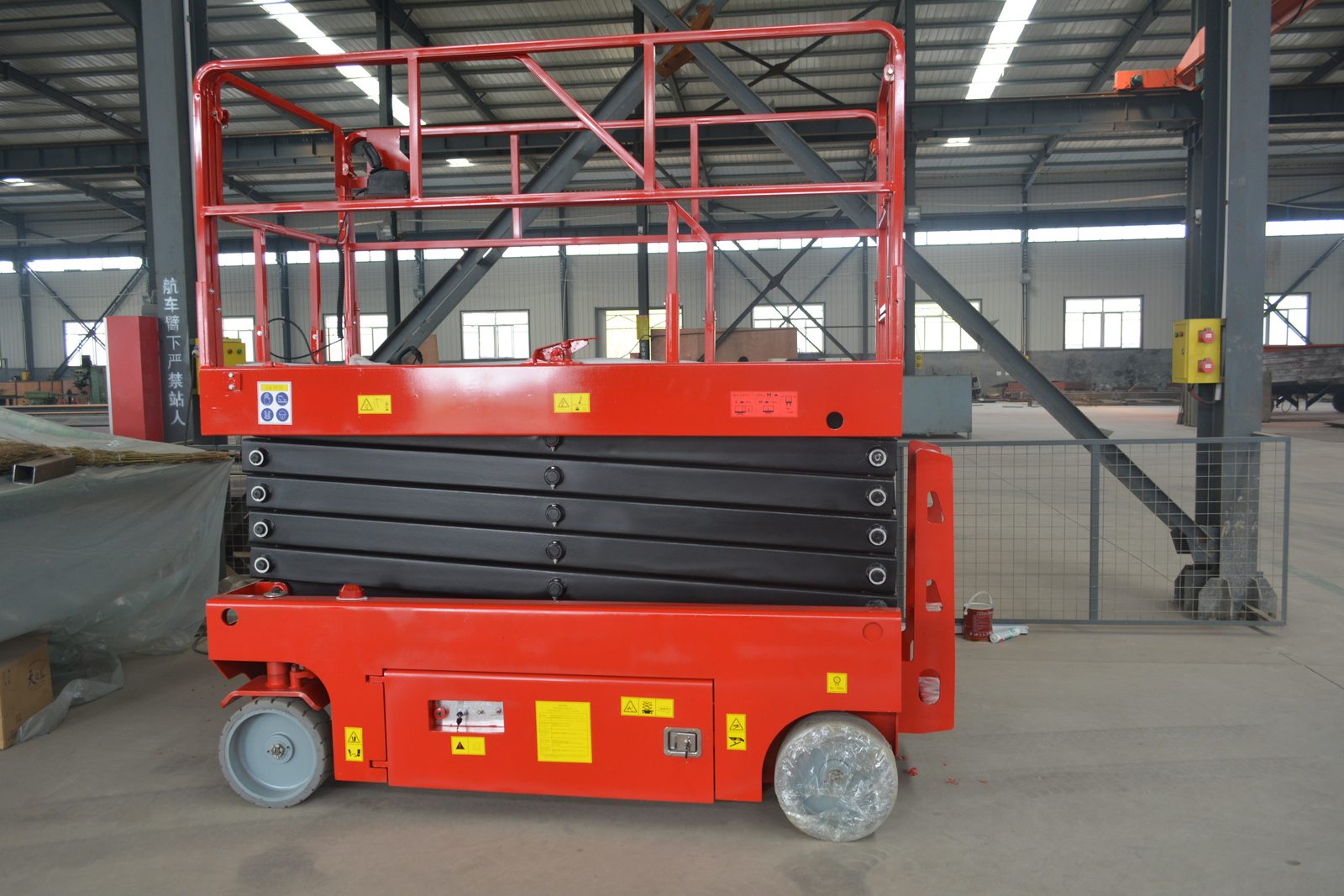

A self-propelled scissor lift raises your team to overhead work and moves itself between work positions. The operator drives, steers and lifts from the controls on the platform, so nobody climbs down between tasks and no second person is needed on the ground. The range covers platform heights from 4.6 m to 13.8 m, which suits lighting, cabling, ducting, painting and racking maintenance inside buildings and in the yard.
Available models
| Model | Platform height | Working height | Rated load | Platform size | Stowed size (L x W x H) | Weight |
|---|---|---|---|---|---|---|
| GTJZ4.6 | 4.6 m | 6.6 m | 200 kg | 1370 x 716 mm | 1483 x 830 x 1740 mm | 870 kg |
| GTJZ06 | 6 m | 8 m | 450 kg | 2270 x 1120 mm | 2430 x 1220 x 1711 mm | 2060 kg |
| GTJZ08 | 8 m | 10 m | 450 kg | 2270 x 1120 mm | 2430 x 1220 x 1711 mm | 2208 kg |
| GTJZ08B (narrow) | 8 m | 10 m | 320 kg | 2273 x 810 mm | 2477 x 850 x 1956 mm | 2208 kg |
| GTJZ10 | 10 m | 12 m | 320 kg | 2270 x 1120 mm | 2430 x 1220 x 1974 mm | 2450 kg |

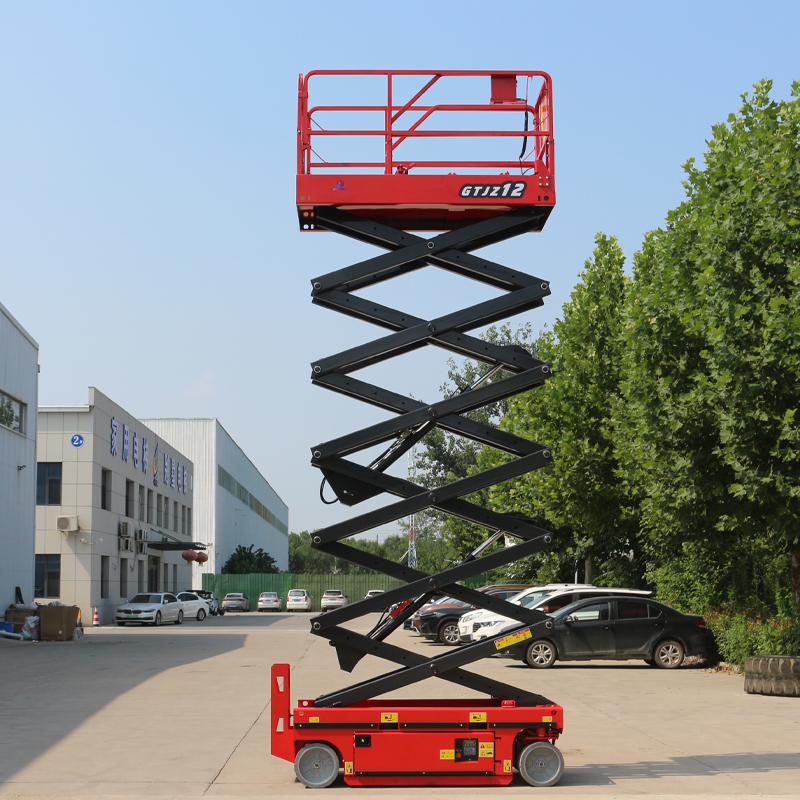

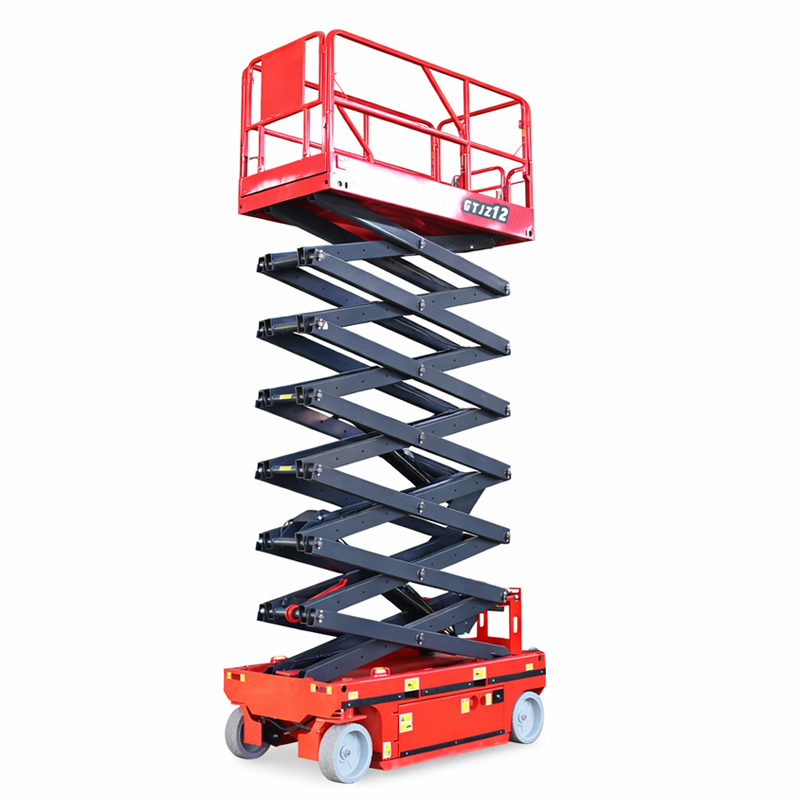

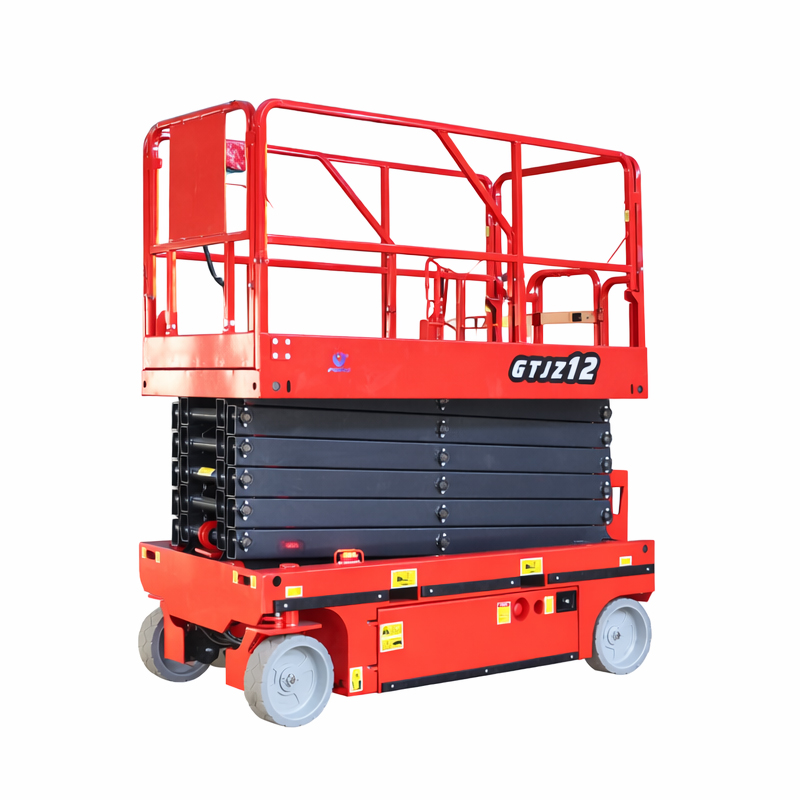

| GTJZ12 | 12 m | 13.8 m | 320 kg | 2270 x 1140 mm | 2390 x 1210 x 2050 mm | 3000 kg |
| GTJZ14 | 13.8 m | 15.8 m | 230 kg | 2636 x 1130 mm | 2850 x 1380 x 1950 mm | 3570 kg |
Common specifications
| Platform extension | 0.9 m on all models |
|---|---|
| Extension deck capacity | 113 kg (110 kg on GTJZ4.6 and GTJZ14) |
| Lifting / drive motor | 24 V / 3.3 kW on GTJZ06 to GTJZ10; 24 V / 4.5 kW on GTJZ12 and GTJZ14; AC 16 V / 1.8 kW on GTJZ4.6 |
| Lifting speed | 6 – 9 m/min on GTJZ06 to GTJZ10; 3 – 5 m/min on GTJZ12 and GTJZ14 |
| Travel speed | 3.8 km/h stowed and 0.8 km/h raised (3.5 km/h stowed on GTJZ4.6, GTJZ12 and GTJZ14) |
| Battery | Lead acid, maintenance free; 4 x 6 V / 260 Ah on GTJZ12 and GTJZ14 |
| Charger | 24 V / 30 A (24 V / 15 A on GTJZ4.6) |
| Gradeability | 25% |
| Maximum working angle | 1.5 degrees / 3 degrees |
| Tyres | Non-marking solid, 381 x 127 mm (280 x 76 mm on GTJZ4.6) |
| Turning radius, inner / outer | 0.15 m / 2.3 m on GTJZ06 to GTJZ10; 0 / 2.5 m on GTJZ12 and GTJZ14 |
| Wheelbase | 1.89 m (1.138 m on GTJZ4.6, 1.865 m on GTJZ12, 2.24 m on GTJZ14) |
Standard configuration
Every machine in this range is supplied with the following equipment.
- Proportional joystick control and 4 x 2 drive
- Automatic pothole protection system and automatic braking system
- Tilt protection system and platform self-locking door
- Full travel, emergency stop button and emergency descent system
- Buzzer, horn and work schedule / hour meter
- Non-marking tyres and oil pipe explosion-proof valve
- Folding fence, extension deck and charging protection system
- Fault diagnosis system and safety inspection before shipment
- Electrophoresis anti-rust treatment under the paint
Key features
- Drive and steer from the platform. One operator covers a whole hall without leaving the deck.
- Battery electric drive with no exhaust fumes, so the lift can work inside occupied buildings, cold stores and food plants.
- Compact chassis. The narrow GTJZ08B is 0.85 m wide and passes standard internal doorways.
- 0.9 m extension deck to reach over racking, machines or a wall.
- Non-marking solid tyres that leave no marks on finished floors.
- Forklift pockets and a single lifting point for crane loading.
Where this lift works best
- Warehouses and distribution centres: racking, sprinkler and lighting maintenance.
- Factories and workshops: machine installation, ducting and cable trays.
- Retail and shopping centres: ceiling, signage and lighting work during trading hours.
- Cold storage and food plants: quiet, clean and fume-free running.
- Airports, stations and sports halls: repeated high-level inspection.
- Fit-out contractors: partitions, ceilings, painting and fire systems.
Available options
- Narrow chassis version (GTJZ08B) for tight aisles and doorways.
- Single or dual extension decks.
- Rough-terrain tyres and an outdoor finish for yard work.
- Custom platform height, colour and branding.
- Flashing beacon and work light for low-light areas.
Frequently asked questions
What is the difference between platform height and working height?
Platform height is the height of the platform floor. Working height adds roughly 2 m for a person standing on the platform and reaching overhead, so the GTJZ06 has a platform height of 6 m and a working height of 8 m. Tell us the height you need to reach and we will convert it for you.
Which model fits a standard warehouse aisle?
The 2.27 m long platform and 1.22 m machine width suit conventional racking aisles. For narrow aisles, doorways below 1 m or goods lifts, choose the GTJZ08B, which is 0.85 m wide with a 320 kg capacity.
How long does a battery charge last?
The machines use maintenance-free lead-acid batteries with a 24 V / 30 A charger. Charge time and working hours depend on the model and duty cycle; we confirm the figures for your model and shift pattern on request.
How does delivery and shipping work?
We quote on EXW, FOB or CIF terms depending on your port. Five units load into a 20 ft container. Send us the destination port and quantity and we will confirm the loading plan and lead time.
Next step
Send three details: the height you need to reach, the load you will carry, and whether the work is indoors or outdoors. We will reply with the model that fits and a quotation.
