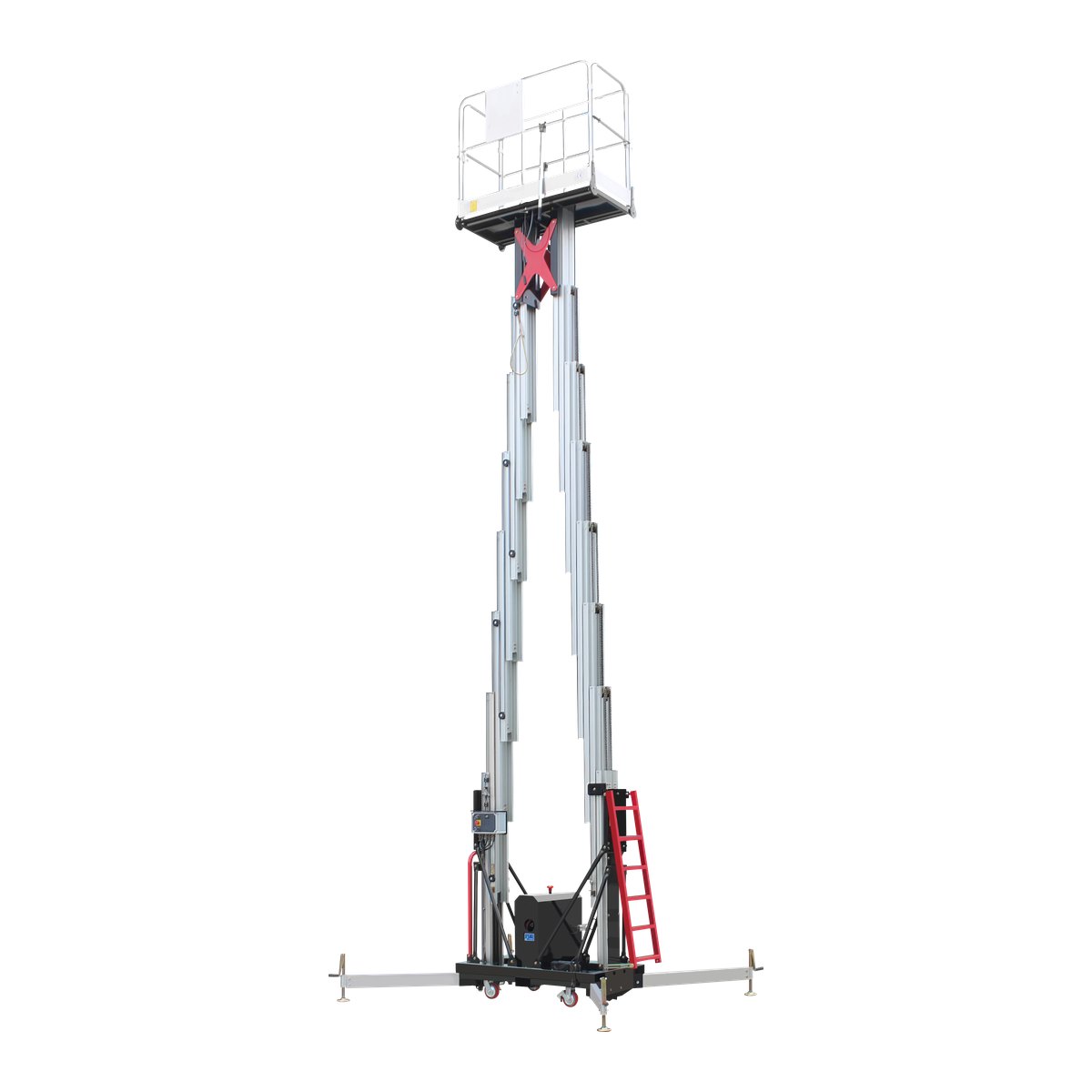

The GTWY double mast lift is the lightest way to get a person and their tools up to twelve metres inside a building. It is pushed by hand on castors, braced with four screw outriggers, and the two aluminium masts raise the platform vertically. Because the whole machine is built from aluminium alloy rather than steel, an 8 m unit weighs 490 kg and a 14 m unit weighs 700 kg, which is light enough to move between floors in a goods lift and gentle enough for mezzanine floors.
What the GTWY double mast lift is
Two vertical masts carry the platform on a chain drive, with a hydraulic cylinder providing the force. The base spreads on four screw outriggers before the platform is raised, and the operator controls the lift from the platform as well as from the base, so a single person can set up, lift, work and lower without help.
- Platform heights from 6 m to 14 m, which means working heights from 7.7 m to 15.7 m.
- Built from 6.5 mm high-strength aluminium profile, so the machine stays light and does not mark or overload floors.
- Four screw outriggers, heat treated and zinc plated, spread the base to as much as 2430 x 2200 mm at full height.
- Two control positions, on the platform and at the base, both on 24 V control voltage.
- AC 220 V as standard, 24 V battery optional, with a 24 V / 15 A smart charger for sites without a socket.
- Emergency descent and an adjustable lowering speed as standard.
Model range and specifications
| Model | Platform height | Working height | Platform size | Outrigger span | Overall length | Weight |
|---|---|---|---|---|---|---|
| GTWY6-200 | 6.0 m | 7.7 m | 1120 x 600 mm | 1890 x 1830 mm | 1320 mm | 420 kg |
| GTWY8-200 | 8.0 m | 9.7 m | 1120 x 600 mm | 1890 x 1830 mm | 1310 mm | 490 kg |
| GTWY9-200 | 9.0 m | 10.7 m | 1240 x 600 mm | 2065 x 1940 mm | 1445 mm | 550 kg |
| GTWY10-200 | 10.0 m | 11.7 m | 1360 x 600 mm | 2270 x 2080 mm | 1550 mm | 590 kg |
| GTWY12-200 | 12.0 m | 13.7 m | 1480 x 600 mm | 2430 x 2200 mm | 1680 mm | 640 kg |
| GTWY14-200 | 14.0 m | 15.7 m | 1480 x 600 mm | 2430 x 2200 mm | 1680 mm | 700 kg |
All six models share the same 200 kg rated load, the same 60 mm base clearance and the same 220 V supply, and all move by hand. The platform grows with the height, from 1120 x 600 mm on the 6 m and 8 m units to 1480 x 600 mm on the 12 m and 14 m units.
Standard build and components
The components are worth listing, because on an aluminium lift they decide how long the machine stays square and how smoothly it lifts.
| Mast profile | High-strength aluminium alloy, 6.5 mm wall thickness |
|---|---|
| Base frame | 100 x 40 x 4 mm tube and 4 mm plate on the 8 m model, upsized to 150 x 50 x 5 mm and 6 mm cold rolled plate on the 10 m model |
| Outriggers | 80 x 40 x 4 mm tube on the 8 m model, 100 x 40 x 4 mm on the taller models, with heat treated and zinc plated screws |
| Platform deck | 3 mm anti-slip checkered plate on a folded frame |
| Guardrail | 20 x 30 x 2 mm tube, 1100 mm high, folding on the taller models |
| Hydraulic cylinder | Diameter 50 mm, two per machine on the 8 m model and three on the 10 m model |
| Seals | Japanese NOK seal set |
| Lifting chain | LL0844 extra-wide leaf chain |
| Hydraulic oil | 32# or 46# anti-wear hydraulic oil |
| Hydraulic hose | 48 MPa two-layer steel wire hose |
| Hydraulic motor | 0.8 kW at 24 V on the 8 m DC model, 2.2 kW at 220 V on the 10 m model |
| Electrical | Chint components, two control positions, 24 V control voltage |
| Castors | Four 6 inch polyurethane wheels on the 8 m model, four 8 inch iron core wheels on the 10 m model |
| Lifting speed | 5 to 6 m per minute upwards, lowering speed adjustable |
| Finish | Sprayed enamel, blue as standard |
| Standard | Built to JB/T 12216-2015 for mast type aerial work platforms |
Double mast or single mast
| Double mast | Single mast | |
|---|---|---|
| Typical platform height | 9 m to 14 m | 4 m to 8 m |
| Platform stability at full height | Higher, load shared between two masts | Good at lower heights |
| Platform size | Up to 1480 x 600 mm | Narrower deck |
| Machine weight | 550 kg to 700 kg | Lighter |
| Where it fits | Tall indoor work needing a wider deck | Tight spaces and lighter duties |
For work up to about eight metres in a tight space, a single mast lift is lighter and easier to move. From nine metres upwards the double mast carries the platform better, deflects less at full height and gives a wider deck, which is why the taller models in this range are all double mast machines.
Where this lift works best
- Warehouse and factory maintenance: lighting, sprinklers, ducting and cable trays.
- Electrical, HVAC and fire system installation at height.
- Ceiling, signage and shopfront work in retail and commercial buildings.
- Airports, stations, exhibition halls and sports venues.
- Painting, cladding and finishing work indoors.
- Food, pharmaceutical and clean environments where a light, quiet machine is preferred.
It is designed for indoor use on firm, level ground, and the outriggers must be fully extended and loaded before anyone climbs up. Where the ground is uneven or the machine has to travel over rough surfaces, a self-propelled mast lift or a scissor lift is the more suitable machine.
Ordering and delivery from FORU
Machines are supplied by Shandong Foru Tech Co., Ltd. and shipped from Qingdao, China on FOB, CIF or EXW terms. Every unit is packed for sea transport, supplied with an operation and maintenance manual, and supported by our export department for documentation and spare parts. Platform height, deck size and voltage can be specified to suit your site, and we quote other heights on request.
Frequently asked questions
Does the lift need to be plugged in to work?
No. The standard machine runs on 220 V, and a 24 V / 80 Ah maintenance-free battery with a 24 V / 15 A charger is available as an option, which lets the lift work away from a socket. The DC versions use a 24 V / 0.8 kW motor up to 9 m and a 24 V / 2.2 kW motor on the taller models.
Can one person set it up and use it?
Yes. The machine is moved by hand on castors, the four outriggers are wound down by hand, and the platform controls let the operator raise, position and lower the lift without a second person on the ground. Two control positions are fitted as standard, one on the platform and one at the base.
What is the difference between platform height and working height?
Platform height is the height of the platform floor, and working height adds roughly 1.7 m for a person standing on it. So the GTWY8-200, with an 8 m platform height, gives about 9.7 m of working height, and the GTWY14-200 gives about 15.7 m.
Next step
Tell us the height you need to reach, the load you will carry and whether you need battery power, and we will confirm the model and quote it complete with the outriggers, controls and manual. See the single mast GTWY1 lift for the smaller version, or the self-propelled mast lift with jib if the machine has to drive itself and reach over an obstacle.
